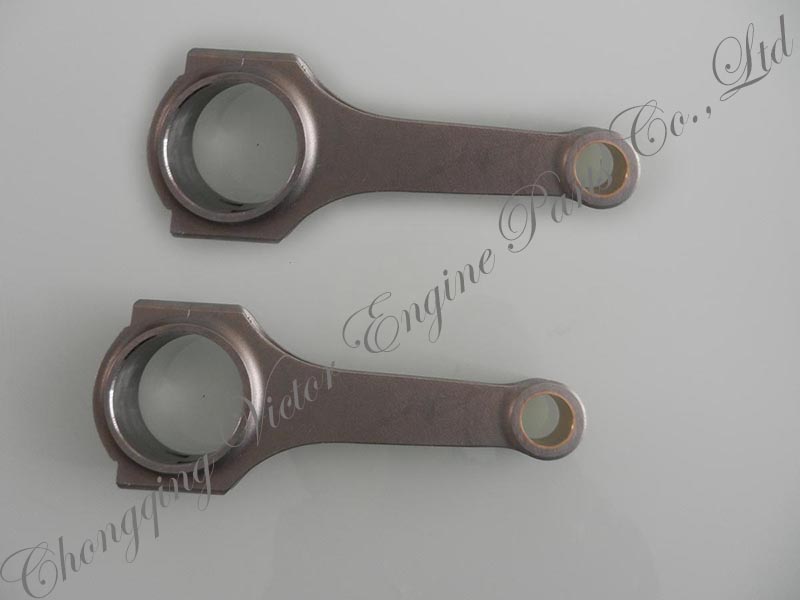

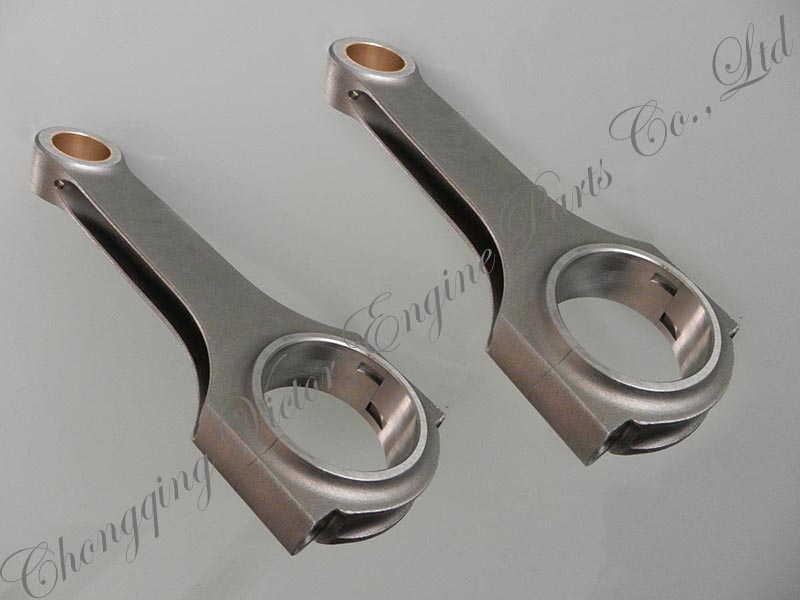

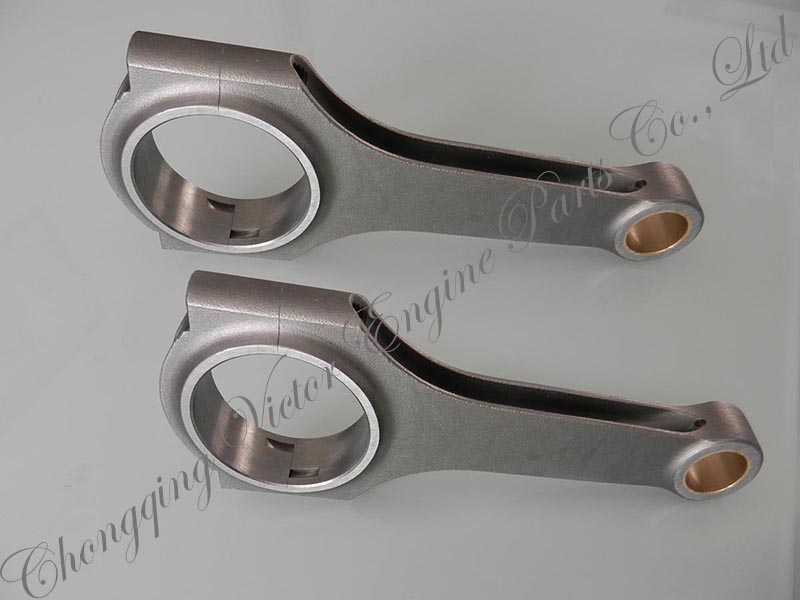

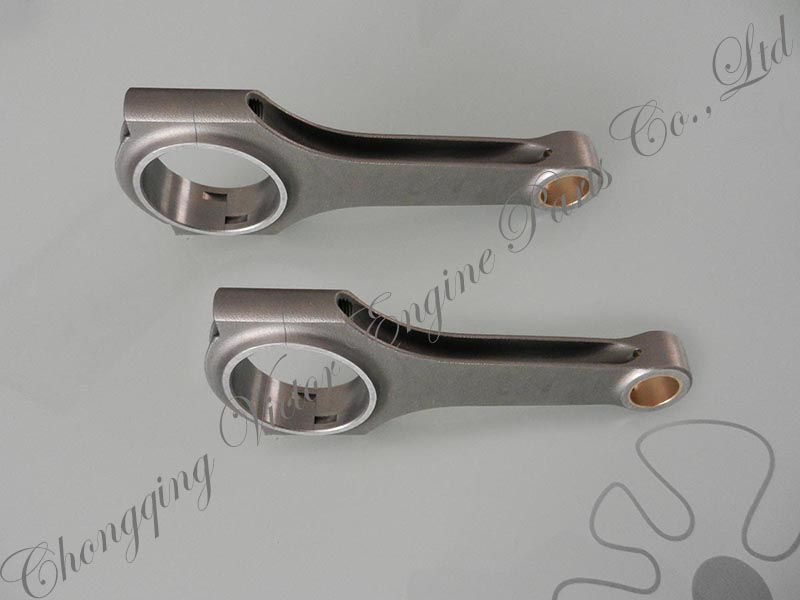

012AG33648 012AG33654 012AG33670 Chevy Big Block connecting rods conrods
- Materials is high tensile 4340 forged steel
- .Each rod is multi-stage heat-treated
- Shot-peened to stress-relieve the metal.
- Is customized
- Product description: 012AG33648 012AG33654 012AG33670 Chevy Big Block connecting rods conrods
Product introduction
Key Products Features
1.Materials is high tensile 4340 forged steel.
2.Each rod is multi-stage heat-treated,
3.X-rayed,
4.Sonic-tested,
5.Magnafluxed,
6.100 percent machined,
7.Shot-peened to stress-relieve the metal.
8.Precision cap alignment sleeves to positively locate each rod cap,
9.Aluminium bronze bushings for floating pin models,
10. Hardness is HRC33-38.
11.Bolts tesile strength
Application
For Chevy Big Block
Style number
012AG33648 012AG33654 012AG33670
Beam style
H-beam
Material
Forged 4340 steel
Tolerance
Sets weight match +/-1 gram
Warranty
1 year
Measurement
Style no
Description
CC
B/E bore
S/E bore
B/E width
S/E width
Bolts
012AG33648
For chevy big block
164.592
59.055
25.146
25.197
26.975
7/16"
012AG33654
For chevy big block
165.989
59.055
25.146
25.197
26.975
7/16"
012AG33670
For chevy big block
170.18
59.055
25.146
25.197
26.975
7/16"
Price: for the latest price, please feel free to contact us.
Payment:T/T ,Paypal
Quality: Stable and reliable
Strict QC management
Certification: ISO/TS16949 and ISO14001
Beam Style:H-beam/I-beam
Bushing:Bronze bushing
Rod Wrist Pin Style:Floating/ Press Fit
Packaging Details:Rust preventing oil packing,Plastic, Cardboard,Carton,Iron case,Wooden case.
Delivery Detail:30days
