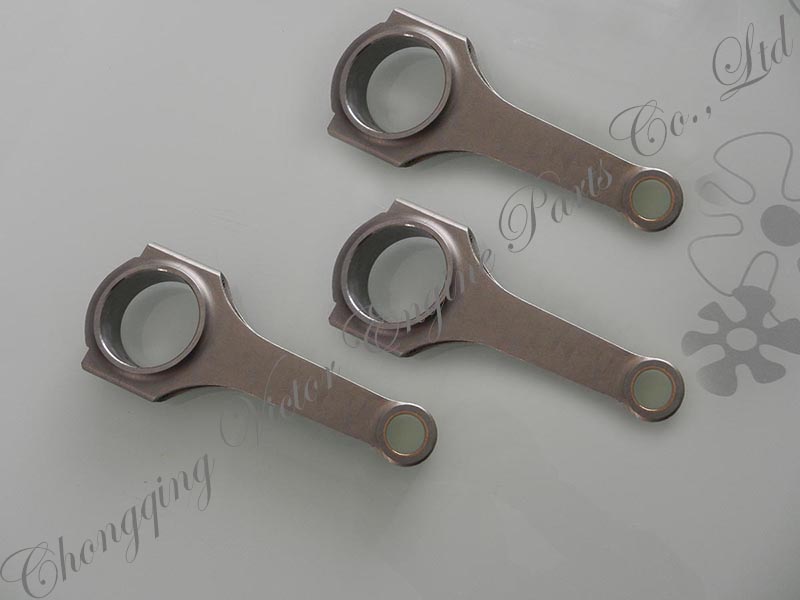

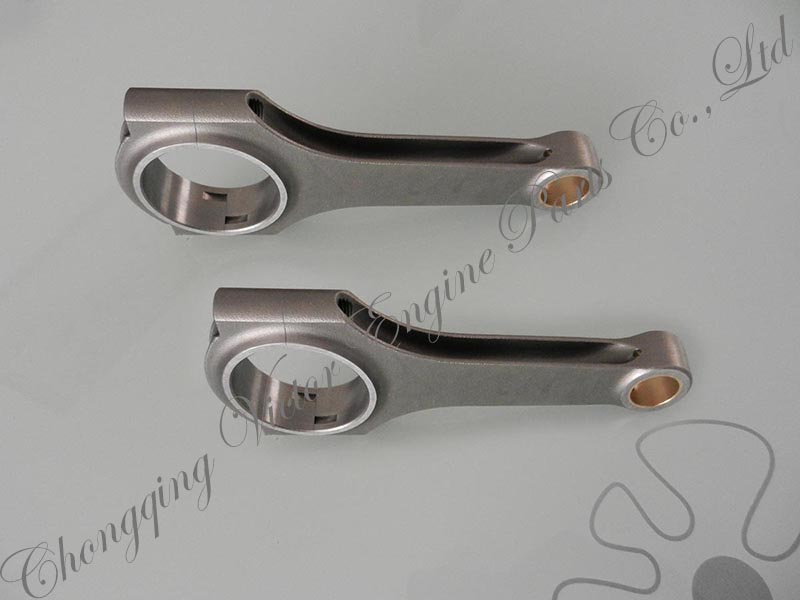

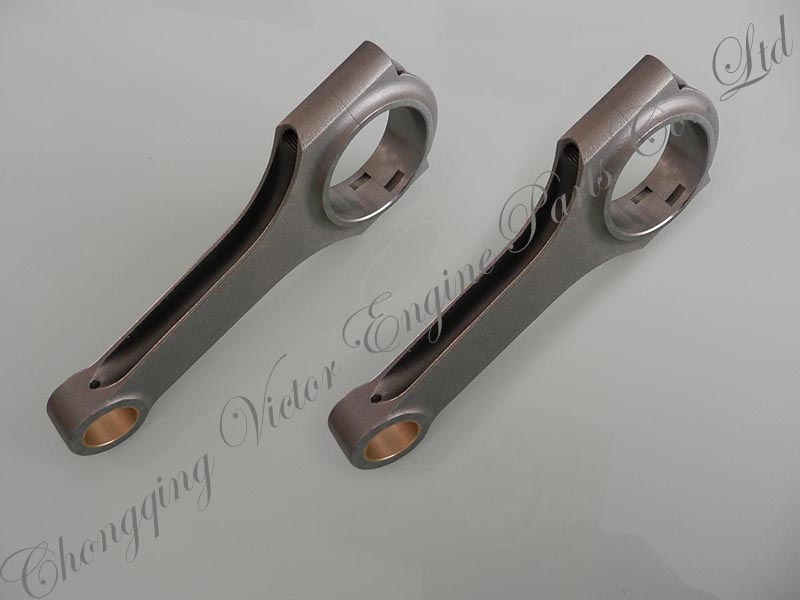

Holden V6 202 connecting rods conrods
- Holden connecting rods
- H-beam
- Forged 4340
- Is customized
- Product description: H-Beam connecting rods conrods Holden V6 202
Product introduction
Key Products Features
1.Materials is high tensile 4340 forged steel.
2.Each rod is multi-stage heat-treated,
3.X-rayed,
4.Sonic-tested,
5.Magnafluxed,
6.100 percent machined,
7.Shot-peened to stress-relieve the metal.
8.Precision cap alignment sleeves to positively locate each rod cap,
9.Aluminium bronze bushings for floating pin models,
10. Hardness is HRC33-38.
11.Bolts tesile strength
Style no | Engine model | pcs/set | (mm)c-c | B/E bore | S/E bore | B/E W | S/E W | bolt |
HOLDEN-001 | V6 cc143.35 | 6 | 143.35 | 60.33 | 23 | 21.45 | 21.45 | 3/8" |
HOLDEN-002 | Holden | 6 | 145.9 | 60.295 | 23.54 | 21.45 | 21.45 | 3/8" |
HOLDEN-003 | 5.740" | 6 | 145.8 | 60.3 | 23 | 21.5 | 21.5 | 3/8" |
HOLDEN-004 | Holden | 6 | 151.14 | 51.45 | 22.02 | 22.88 | 22.88 | 3/8" |
HOLDEN-005 |
202 |
6 | 133.35 | 51.43 | 22 | 23.1 | 23.1 | 3/8" |
Price: for the latest price, please feel free to contact us.
Payment:T/T ,Paypal
Quality: Stable and reliable
Strict QC management
Certification: ISO/TS16949 and ISO14001
Beam Style:H-beam/I-beam
Bushing:Bronze bushing
Rod Wrist Pin Style:Floating/ Press Fit
Packaging Details:Rust preventing oil packing,Plastic, Cardboard,Carton,Iron case,Wooden case.
Delivery Detail:30days
If you can’t find the correct one, please contact us email: manager@victorengineparts.com, we will help find it for you or develop it for you.
