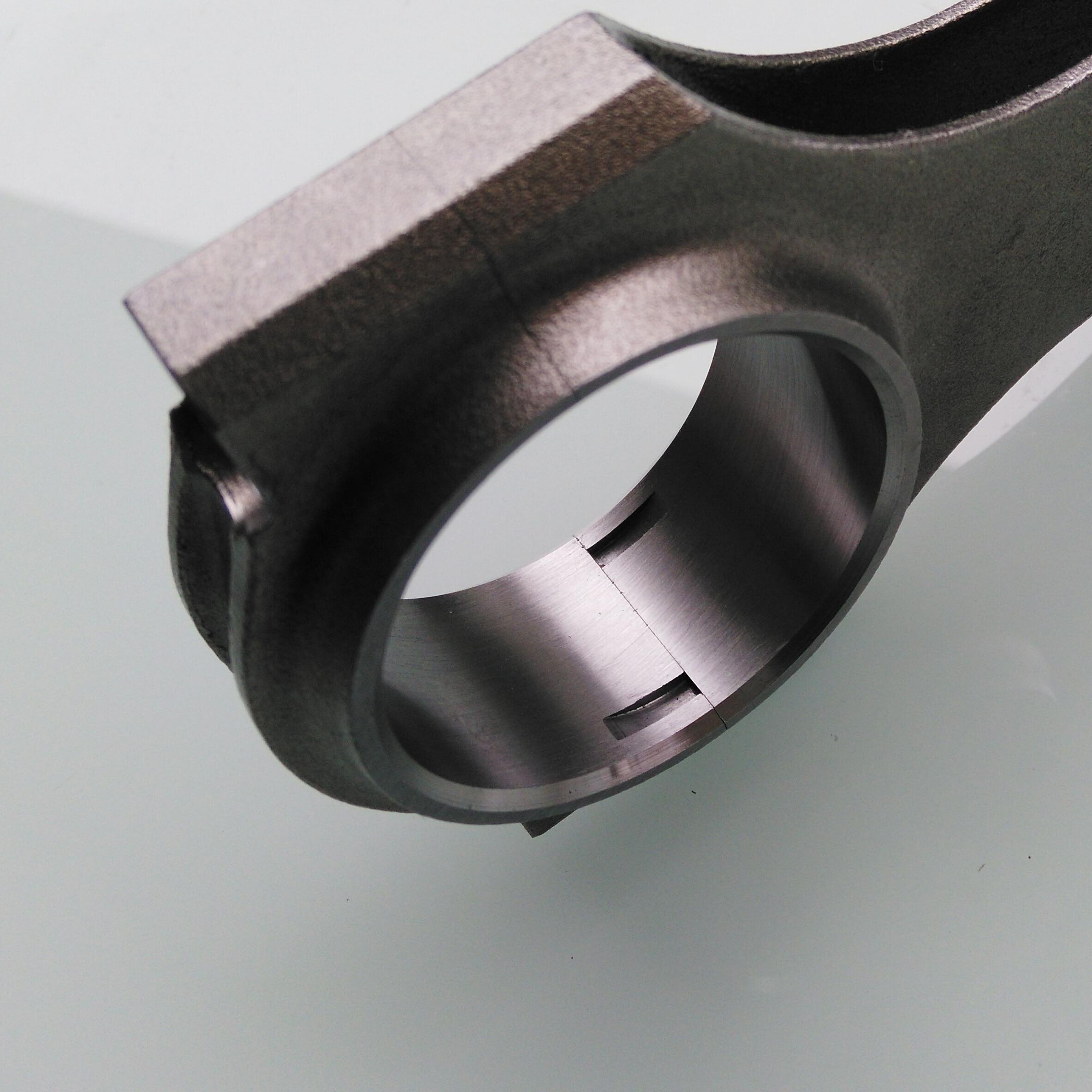

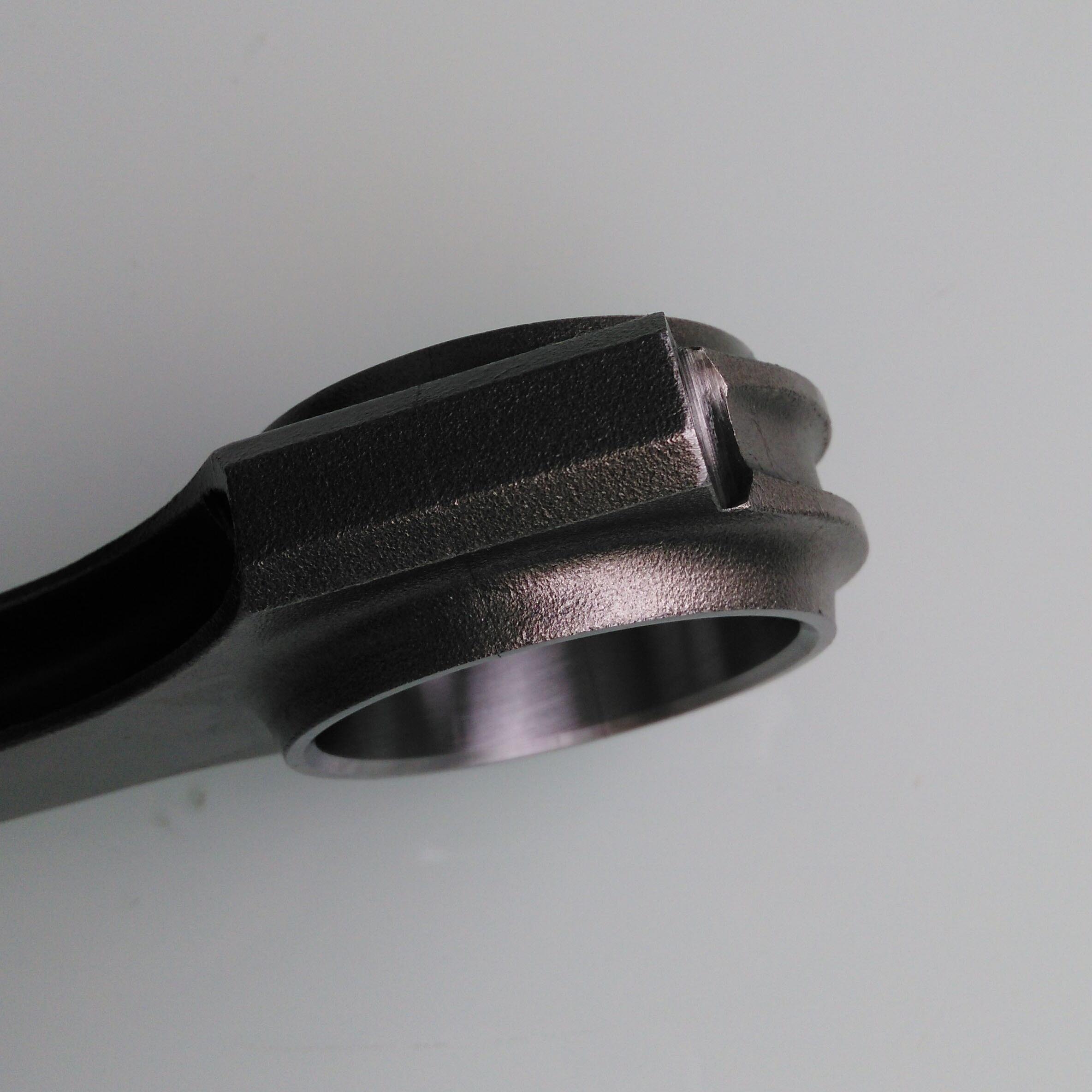

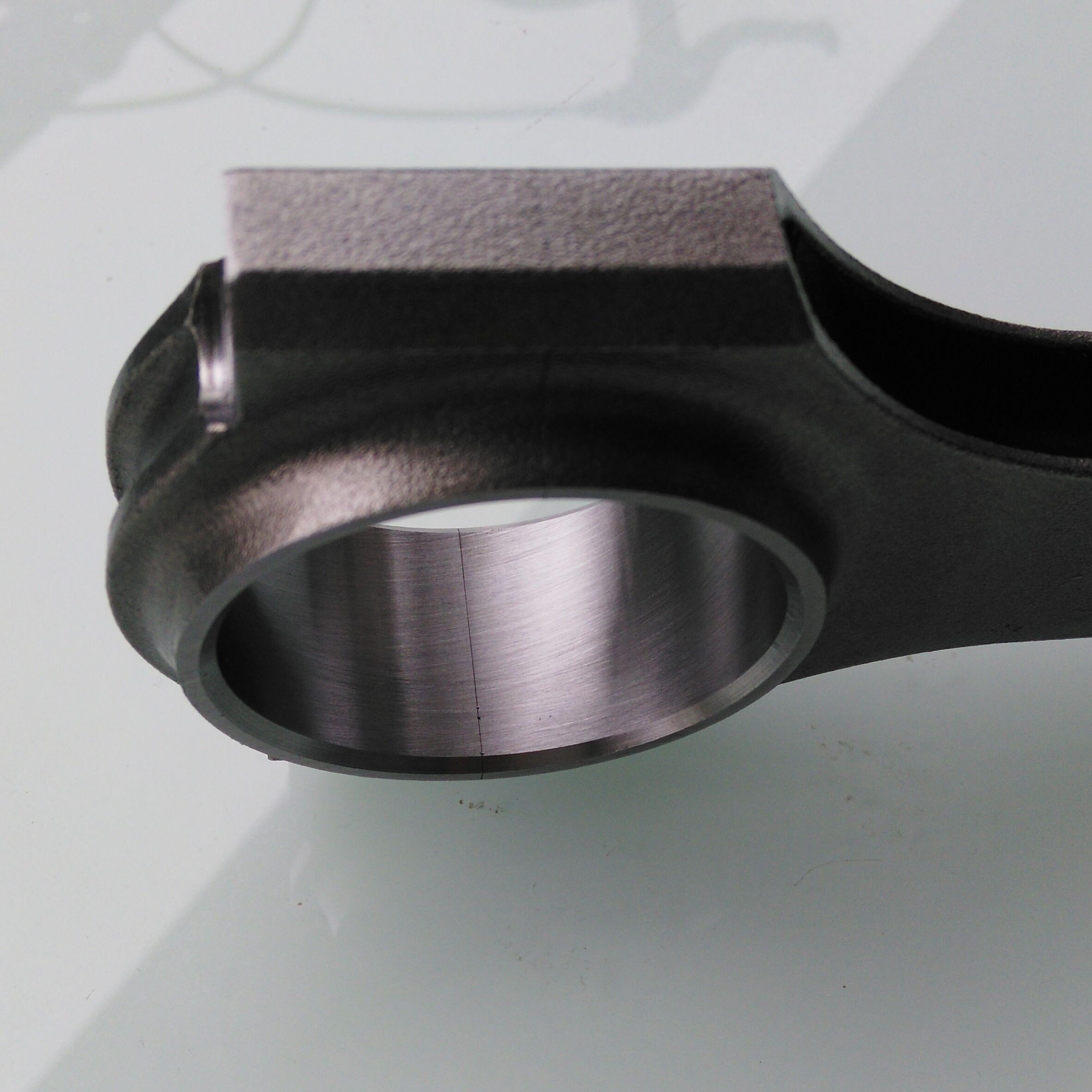

Hyundai TIBURON, G6BA,RIO,ACCENT G4GF G4CP G4LP Connecting rod conords
- H-beam connecting rod
- 4340 forged steel
- For TIBURON G68A RIO
- Is customized
- Product description: Hyundai Tiburon G6BA RIO ACCENT G4GF G4CP G4LP GENSIS COUPE conrods connecting rods
Product introduction
Product Key Features
1.Materials is high tensile 4340 forged steel.
2.Each rod is multi-stage heat-treated,
3.X-rayed,
4.Sonic-tested,
5.Magnafluxed,
6.100 percent machined,
7.Shot-peened to stress-relieve the metal.
8.Precision cap alignment sleeves to positively locate each rod cap,

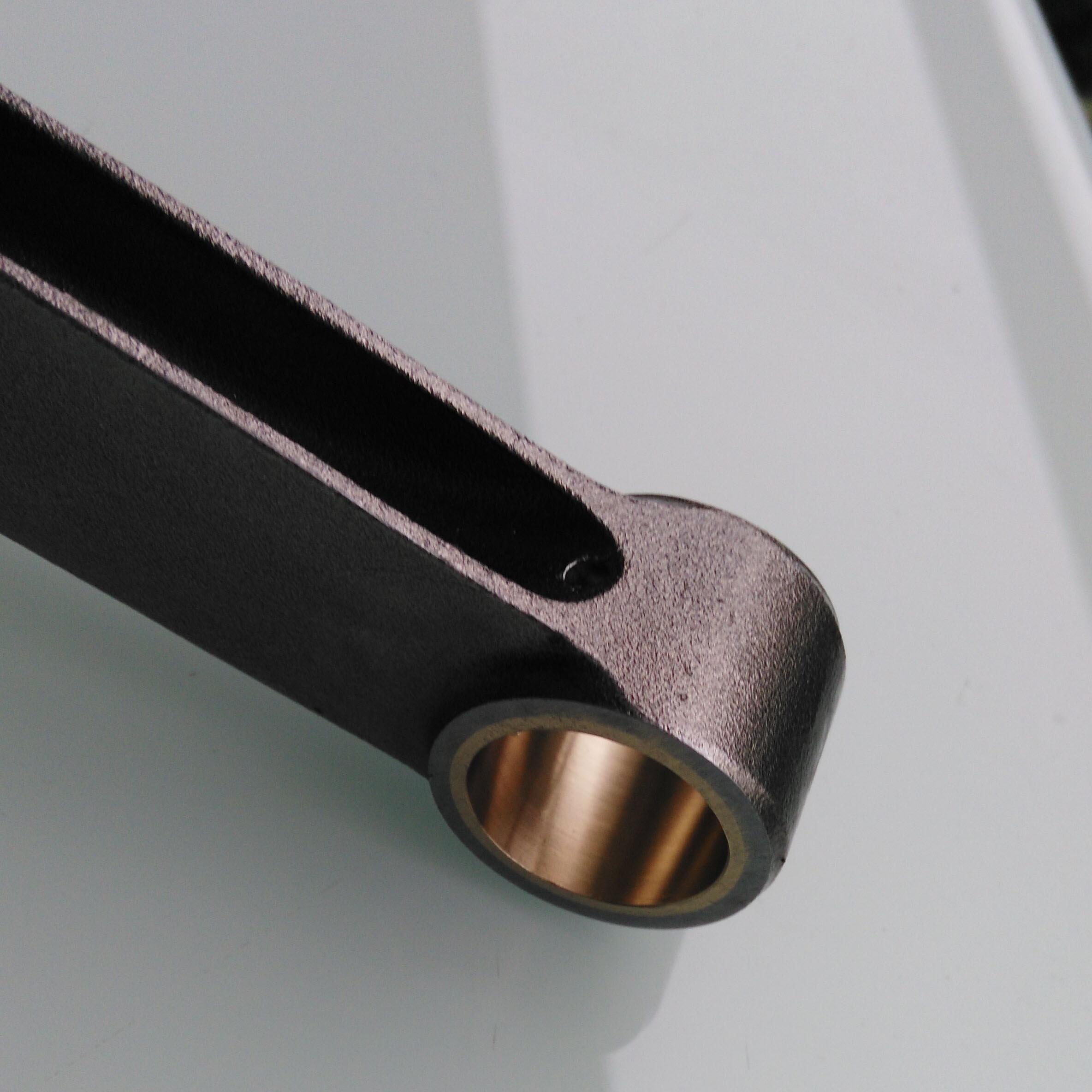

9.Aluminium bronze bushings for floating pin models,
10. Hardness is HRC33-3
Product main measurements
Style No | Description | CYL | CC | Big End | Small End | ||
Diameter | Width | Diameter | Width | ||||
MM | MM | MM | MM | MM | |||
Hyn-001 | for HYUNDAI 1.5 ACCENT/SCOUPE | 4 | 130.91 | 48.01 | 22.86 | 18.02 | 19.81 |
Hyn-002 | for HYUNDAI 1.8L TIBURON | 4 | 140.97 | 48.01 | 25.78 | 20.01 | 22.10 |
Hyn-003 | for TIBURON 2.0L TBO G4CP G4GF | 4 | 146.13 | 48.01 | 25.78 | 20.01 | 22.10 |
Hyn-004 | for HYUNDAI TIBURON SLWT | 4 | 146.13 | 48.01 | 25.78 | 20.00 | 22.23 |
Hyn-005 | for HYUNDAI TIBURON 2.0L | 4 | 146.13 | 48.00 | 25.78 | 20.00 | 22.23 |
Hyn-006 | for HYUNDAI TIBURON 2.0L G4LP HD | 4 | 146.13 | 48.01 | 25.78 | 20.00 | 22.10 |
Hyn-007 | for HYUNDAI G6BA 2.7L | 6 | 140.92 | 51.01 | 19.81 | 21.01 | 19.81 |
Hyn-008 | for HYUNDAI GENESIS COUPE 2.0T | 4 | 146.00 | 51.01 | 21.84 | 22.00 | 21.84 |
Price: for the latest price, please feel free to contact us.
Payment:T/T ,Paypal
Quality: Stable and reliable
Strict QC management
Certification: ISO/TS16949 and ISO14001
Beam Style:H-beam/I-beam
Bushing:Bronze bushing
Rod Wrist Pin Style:Floating/ Press Fit
Packaging Details:Rust preventing oil packing,Plastic, Cardboard,Carton,Iron case,Wooden case.
Delivery Detail:30days
