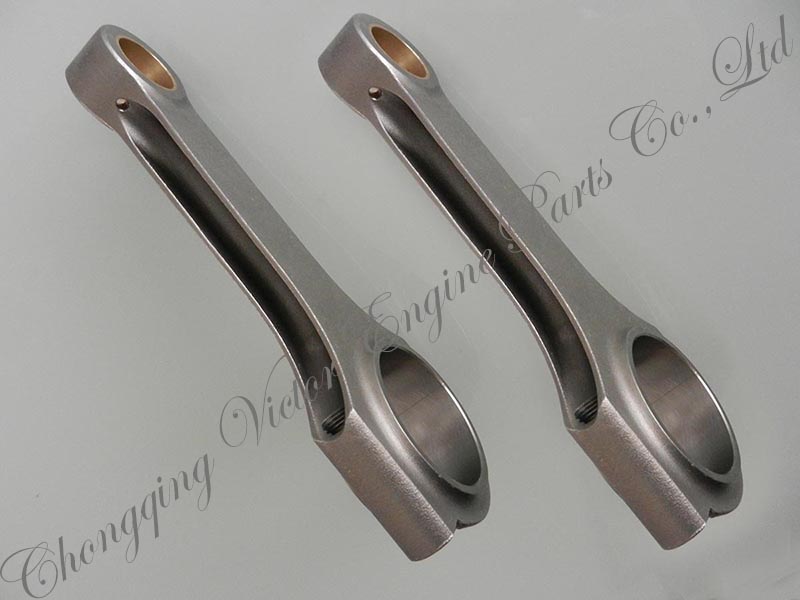

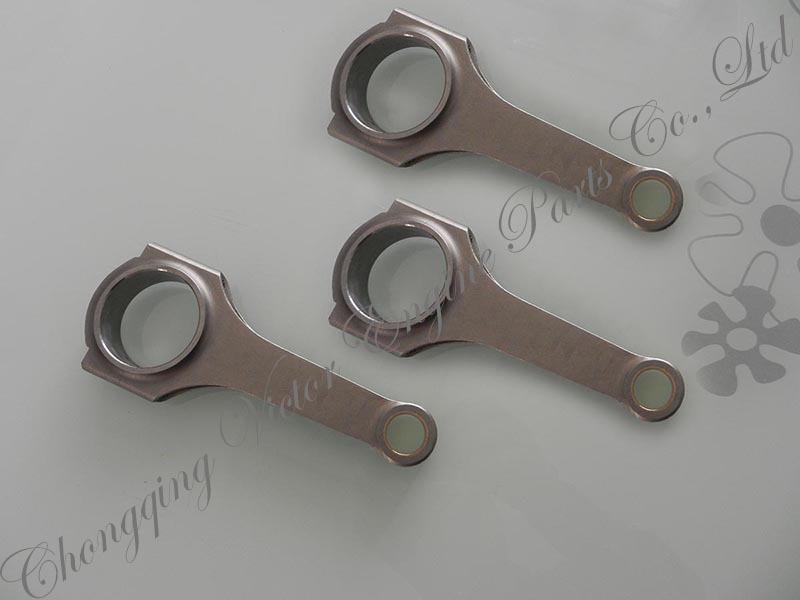

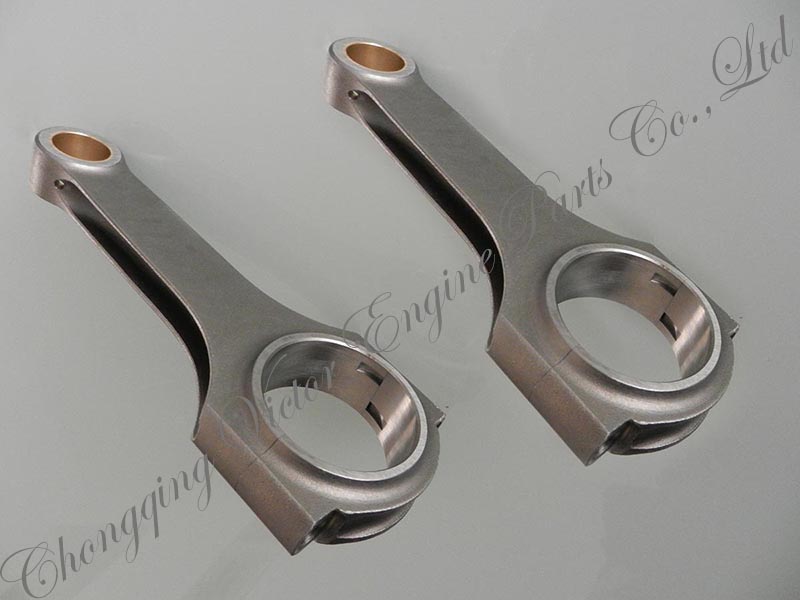

H-beam connecting rod for Kawasaki ZX 10R ZX 11 CRV 124
- Kawasaki connecting rod
- H-Beam
- Forged 4340
- Is customized
- Product description: Kawasaki ZX-10R ZX-11 CRV-124 connecting rods conrods
Product introduction
Key Products Features
1.Materials is high tensile 4340 forged steel.
2.Each rod is multi-stage heat-treated,
3.X-rayed,
4.Sonic-tested,
5.Magnafluxed,
6.100 percent machined,
7.Shot-peened to stress-relieve the metal.
8.Precision cap alignment sleeves to positively locate each rod cap,
9.Aluminium bronze bushings for floating pin models,
10. Hardness is HRC33-38.
11.Bolts tesile strength
Style no | Engine model | pcs/set | (mm)c-c | B/E bore | S/E bore | B/E W | S/E W | bolt |
KAWASAKI | SGB-2(ZXR900) | 4 | 104.5 | 38 | 18 | 22.85 | 18 | 5/16" |
KAWASAKI | KAZX7 3.937" | 4 | 100 | 37 | 18 | 22.8 | 22.8 | 5/16" |
KAWASAKI | KA-X11 4.370" | 4 | 111 | 39 | 18 | 22.86 | 22.86 | 5/16" |
KAWASAKI | GSXR | 4 | 117 | 41 | 20.006 | 21 | 21 | 5/16" |
KAWASAKI | 117 | 4 | 117 | 41 | 17 | 22.8 | 18 | 5/16" |
KAWASAKI | 104.5 | 4 | 104.5 | 38 | 18 | 22.8 | 18.2 | 5/16" |
KAWASAKI | ZX-10R | 4 | 106.63 | 37.5 | 17.02 | 20.9 | 16 | 5/16" |
KAWASAKI | ZX-11 | 4 | 111 | 39 | 18 | 22.86 | 22.86 | 3/8" |
KAWASAKI | CRV-124 | 4 | 124 | 41 | 19.006 | 19.91 | 17.15 | 5/16" |
Price: for the latest price, please feel free to contact us.
Payment:T/T ,Paypal
Quality: Stable and reliable
Strict QC management
Certification: ISO/TS16949 and ISO14001
Beam Style:H-beam/I-beam
Bushing:Bronze bushing
Rod Wrist Pin Style:Floating/ Press Fit
Packaging Details:Rust preventing oil packing,Plastic, Cardboard,Carton,Iron case,Wooden case.
Delivery Detail:30days
