> Toyota

Toyota 2JZ 4AG 3SG 3TG 7MGTE connecting rods & conrods

Toyota connecting rods
2JZ 4AG 3SG 3TG 7MGTE engine
4340 forged
Is customized

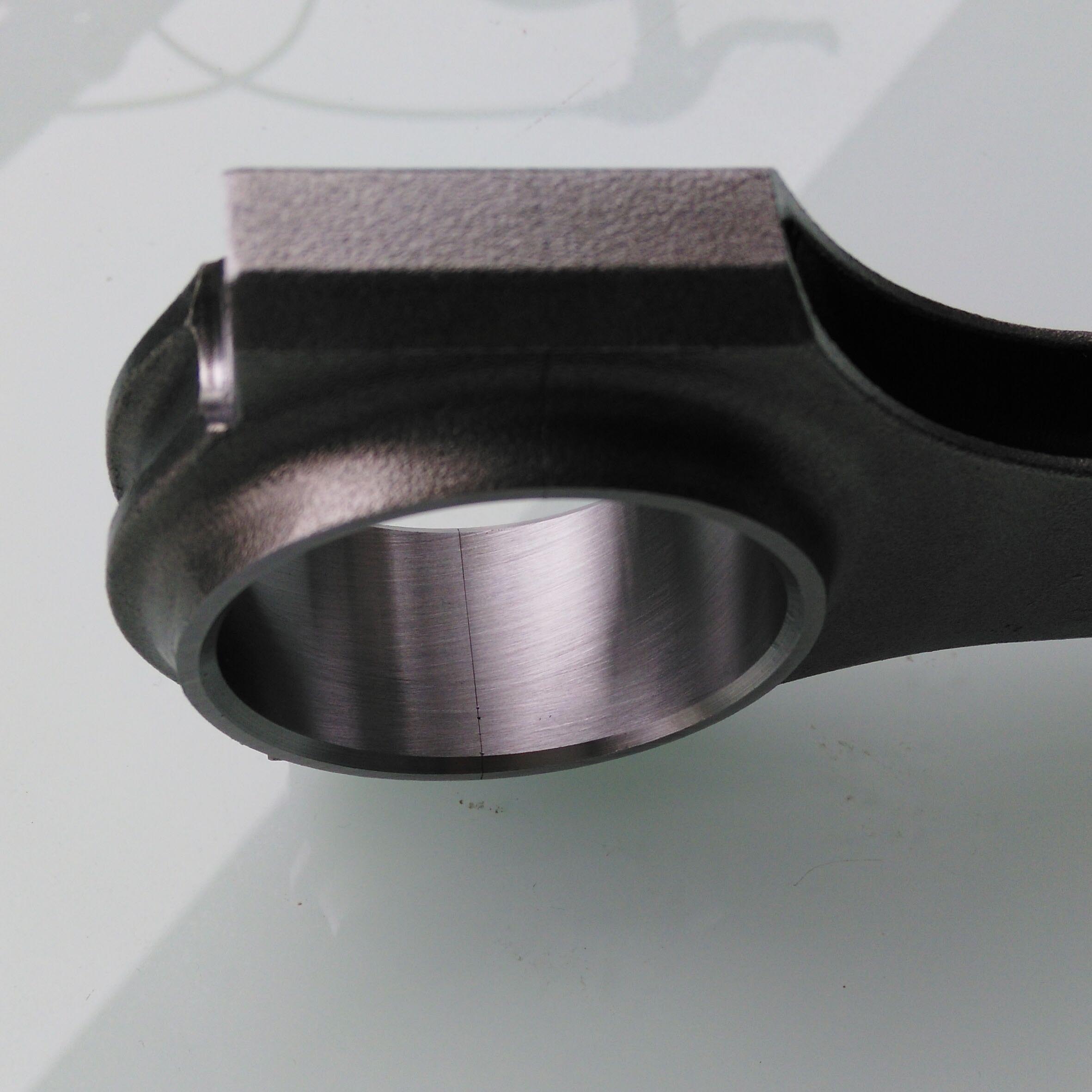

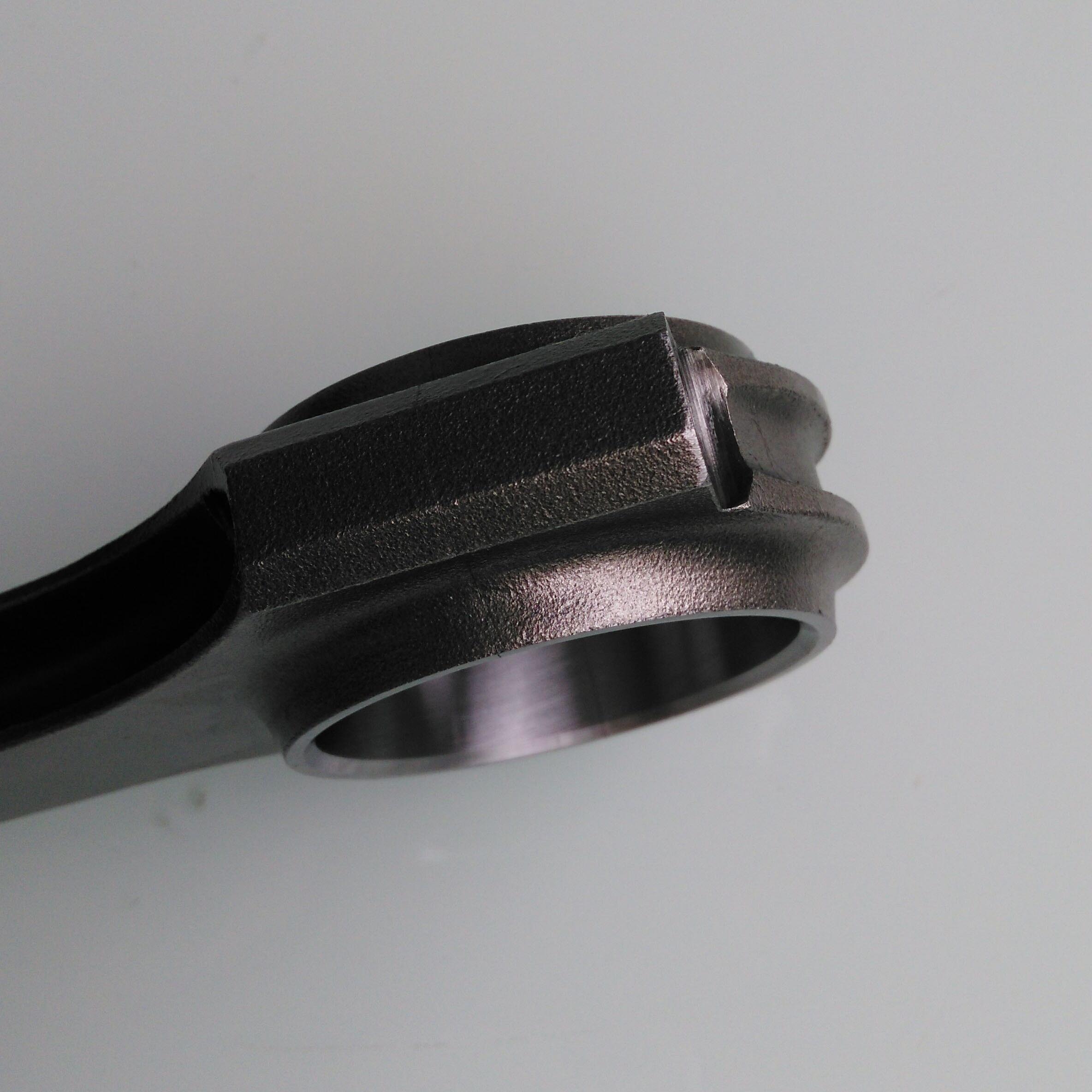

Product description: Toyota 2JZ 4AG 3SG 3TG 7MGTE connecting rods & conrods
Inquiry

Product introduction

Key Products Features

1.Materials is high tensile 4340 forged steel.

2.Each rod is multi-stage heat-treated,

3.X-rayed,

4.Sonic-tested,

5.Magnafluxed,

6.100 percent machined,

7.Shot-peened to stress-relieve the metal.

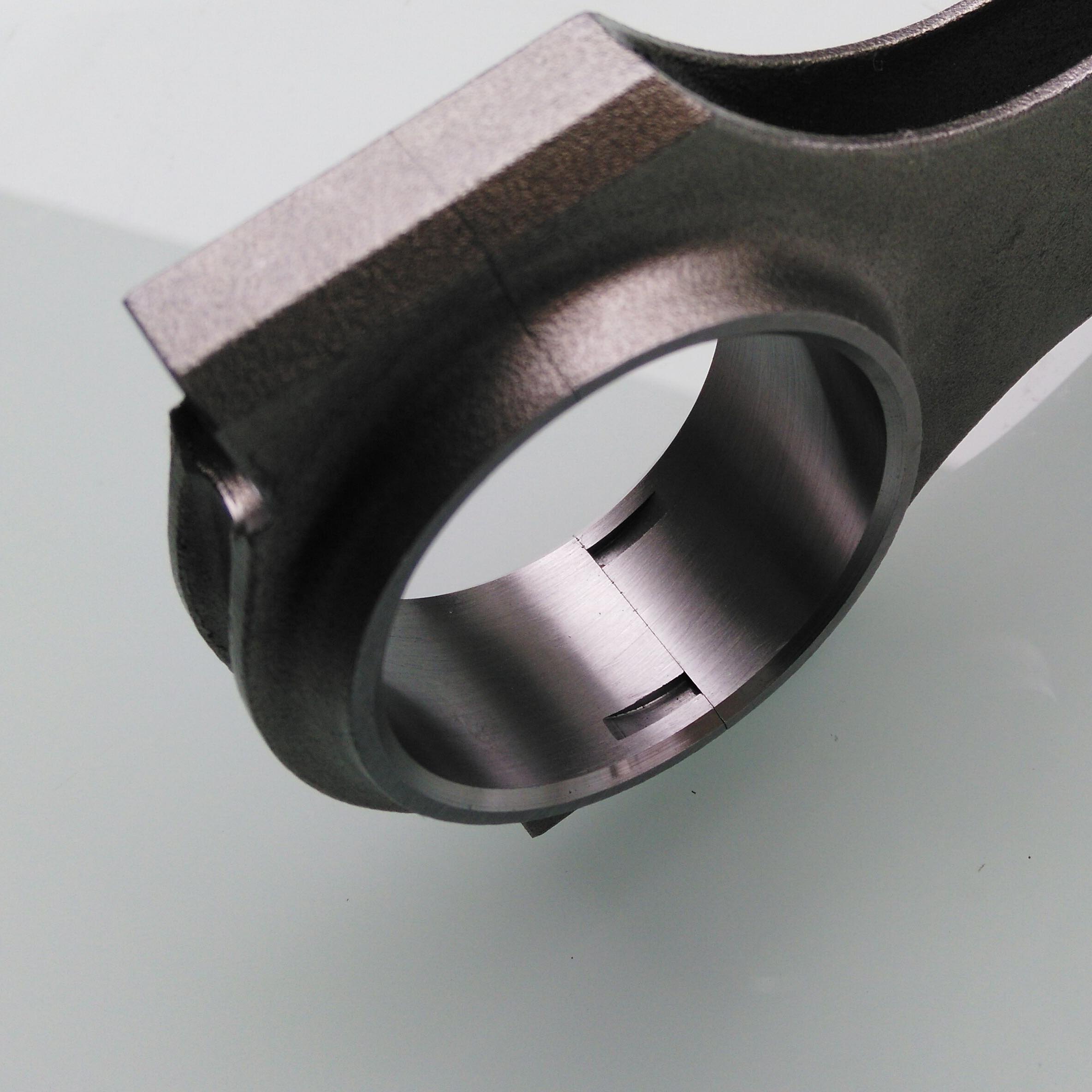

8.Precision cap alignment sleeves to positively locate each rod cap,

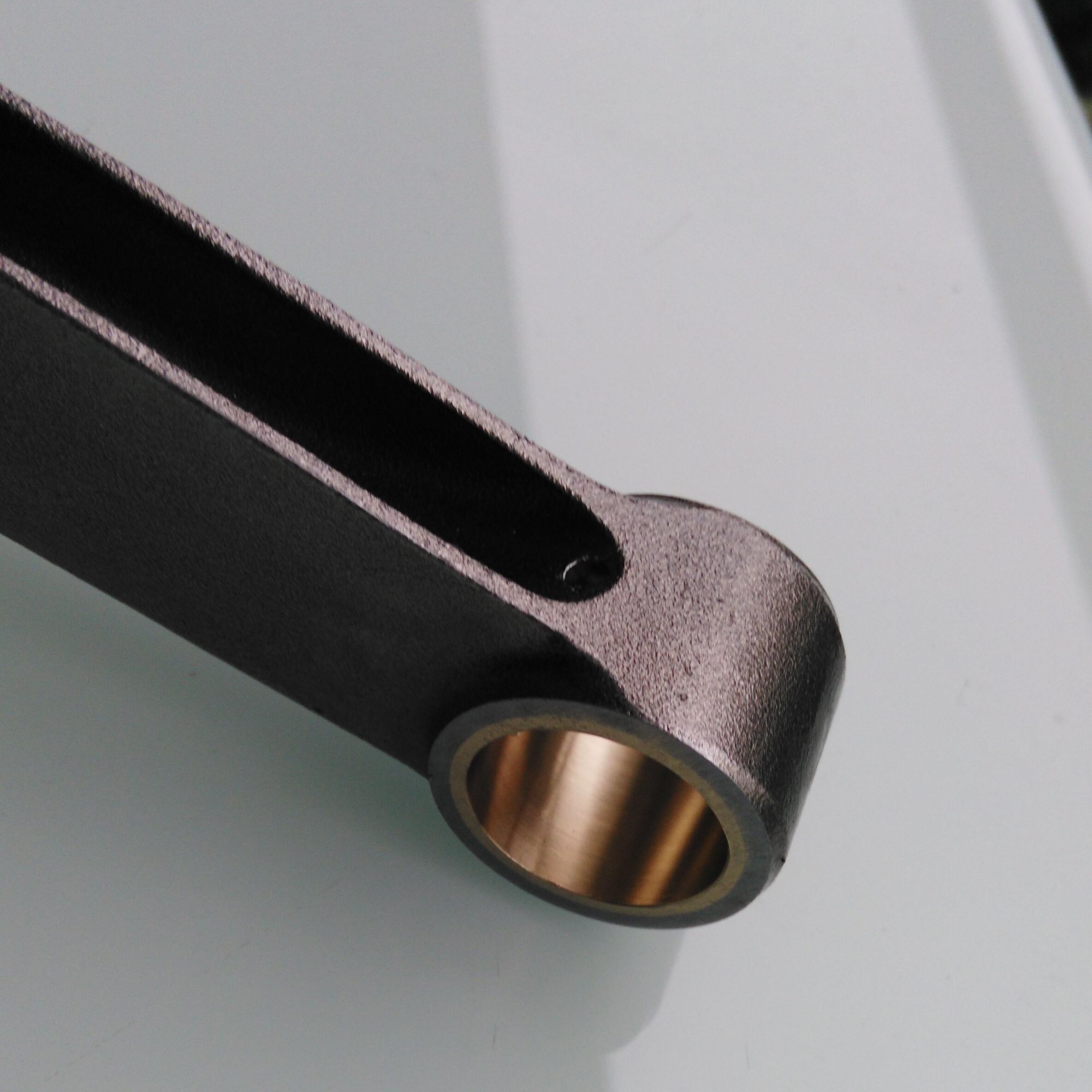

9.Aluminium bronze bushings for floating pin models,

10. Hardness is HRC33-38.

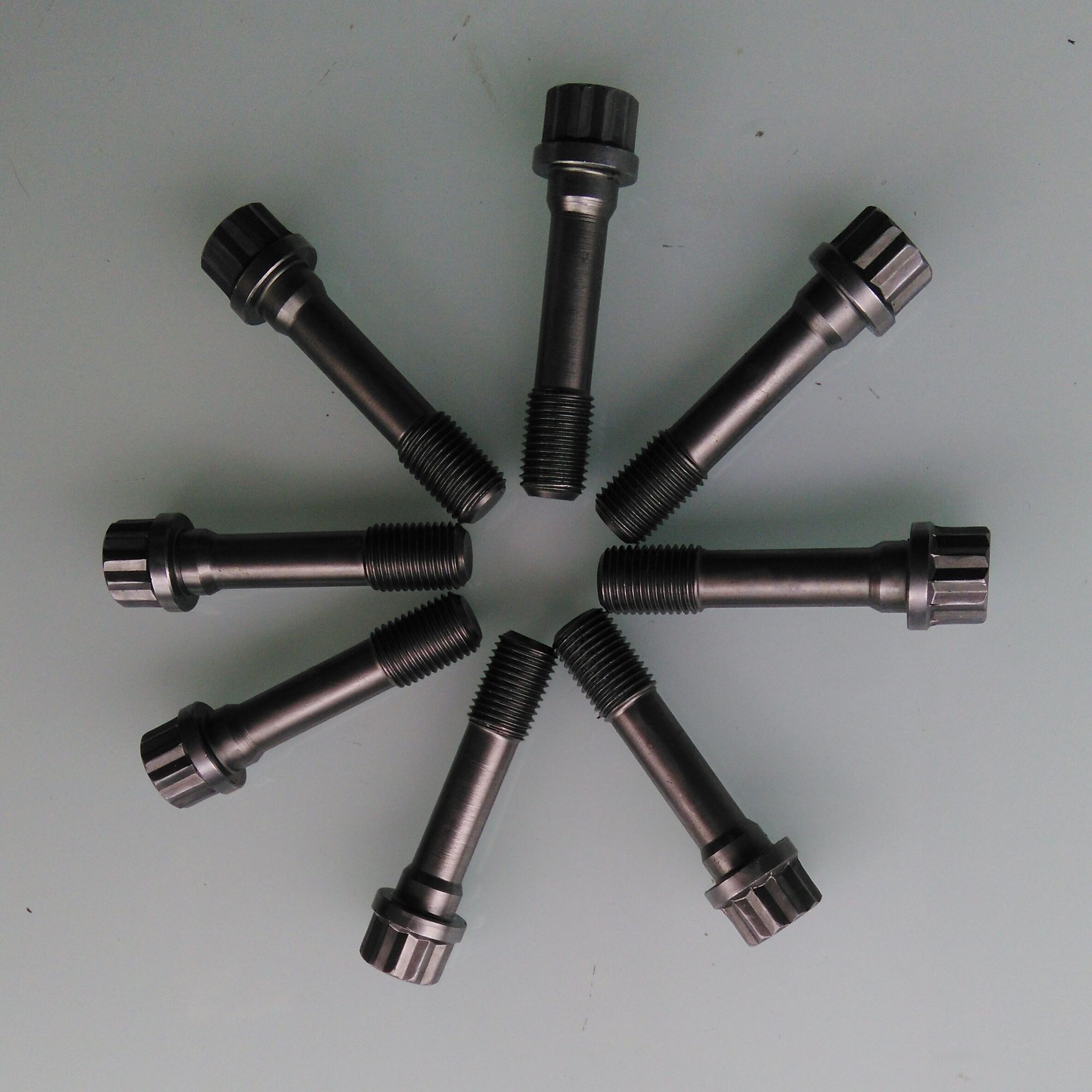

11.Bolts tesile strength

Style No.	Engine model	pcs/set	(mm)c-c	B/E bore	S/E bore	B/E W	S/E W	bolt
Toyota-001	2JZ	6	142.00	55	22	26	26	3/8"
Toyota-002	2JZ	6	142.00	55	22.005	26	22	3/8"
Toyota-003	4AG	4	122.00	45	20	21.8	21.8	5/16"
Toyota-004	134	4	134.00	45	18	21.8	21.8	5/16"
Toyota-005	4AGE	4	132.00	45	18	21.5	19	5/16"
Toyota-006	4AGE	4	127.00	45	18	21.5	25	5/16"
Toyota-007	5K	4	131.00	45	18	24.7	24.7	5/16"
Toyota-008	Toyota	4	127.00	45	18	21.5	25	5/16"
Toyota-009	RDT-4A(4AG)	4	122	45	20	21.8	22	5/16"
Toyota-010	3SG	4	138.00	51	22.02	26.75	23.5	3/8"
Toyota-011	140.8	4	140.80	51	22.02	26.7	23.5	3/8"
Toyota-012	3SG	4	138.00	51	22	24.032	26.92	3/8"
Toyota-013	3sg	4	138.00	51	22.02	26	23.5	3/8"
Toyota-014	3SG	4	144.00	51	22.02	26.75	23.5	3/8"
Toyota-015	Toyota	4	137.50	55	22	26.75	26.75	3/8"
Toyota-016	3SG	4	146.00	51	22.02	26.75	23.5	3/8"
Toyota-017	3SG-I	4	138.00	51	22	26.75	23.5	3/8"
Toyota-018	CRT-1(4E-FTE)	4	118	43	18	20.8	20.78	5/16"
Toyota-019	Starbet		118	43	18	20.8	20.8	3/8"
Toyota-020	4AGD	4	122	43	20	21.8	21.8	5/16"
Toyota-021	4AGE	4	122	45.01	20.008	21.8	21.8	5/16"
Toyota-022	4AGC	4	122	45.01	20.008	21.8	21.8	5/16"
Toyota-023	CR-TS-127.3	4	127.3	45.01	20.01	21.8	21.8	3/8"
Toyota-024	4AGE	4	144	45	20	21.85	21.85	3/8"
Toyota-025	Toyota	4	122	43	20	21.8	21.8	3/8"
Toyota-026	4AGE	4	122	45	20	21.8	21.8	3/8"
Toyota-027	4AGE	4	135.5	45	20.005	21.8	21.8	3/8"
Toyota-028	4AGE	4	132	45	18	21.5	21.5	3/8"
Toyota-029	Toyota	4	125	45.01	20.01	21.8	21.8	3/8"
Toyota-030	Toyota	4	127	45.01	20.01	21.8	21.8	3/8"
Toyota-031	2TC/3TC 4.850"	4	123.2	48	21.97	26.8	26.92	5/16"
Toyota-032	Supra 7MGTE 152	6	152	55	22.02	24.8	24.8	3/8"
Toyota-033	Supra	6	152	51	22.02	24.8	24.8	3/8"
Toyota-034	7MGTE	6	152	55	22.02	24.8	24.8	3/8"
Toyota-035	2AZ-FE 5.886"	4	149.5	51.001	22	19.81	19.81	3/8"
Toyota-036	CC154(4.5L)	6	154	60.6	26	27.77	27.77	7/16"
Toyota-037	CC154(4.5L)Aluminium	6	154	60.6	26.01	27.77	27.77	7/16"
Toyota-038	4AG-2	4	122	45	20.005	21.8	21.8	5/16"
Toyota-039	4AG-2	4	122	45	20	21.8	21.8	5/16"
Toyota-040	4AG-3	4	122	45	20.005	21.8	21.8	3/8"
Toyota-041	2TG	4	123	51	22	26.8	20.8	5/16"
Toyota-042	Toyota	4	130.5	46	18	26.8	20.8	5/16"
Toyota-043	5E	4	130.5	46	18.005	20.8	20.8	3/8"
Toyota-044	Toyota	4	134.5	46	19	20.8	20.8	5/16"
Toyota-045	5E	4	130.5	46	18.005	20.8	20.8	3/8"
Toyota-046	3TC	4	123	51.005	21	26.8	24	5/16"
Toyota-047	Toyota	4	122.8	51	22	26.72	24	3/8"
Toyota-048	4E	4	118	43	18	20.8	20.8	5/16"
Toyota-049	CC146.7	4	146.7	47	20	19.8	19.8	5/16"
Toyota-050	Toyota	4	134.5	47	20.01	19.8	19.8	3/8"
Toyota-051	1jz-4tg	4	125.2	55	22.01	25.9	25.9	3/8"
Toyota-052	CELICA 2.0L	4	122.5	51.6	21	23.8	24	3/8"
Toyota-053	140.9	4	140.9	43	18	17.92	17.92	5/16"
Toyota-054	4AGD	4	135	43	16	21.8	18	5/16"
Toyota-055	3TG	4	122.9	51	22.01	26.7	26.7	3/8"
Toyota-056	3TG I-beam	4	124	51	21	26.8	26.8	3/8"
