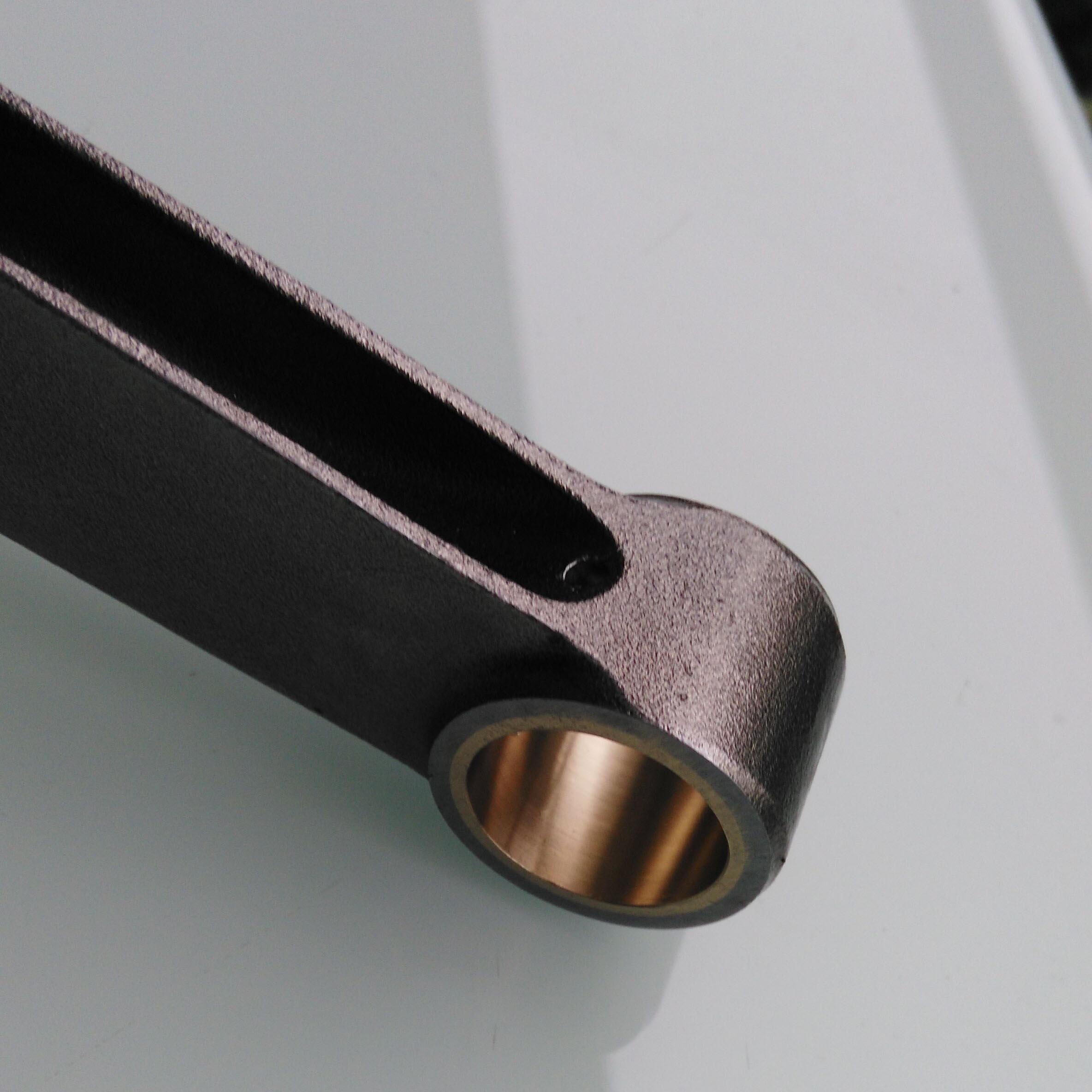

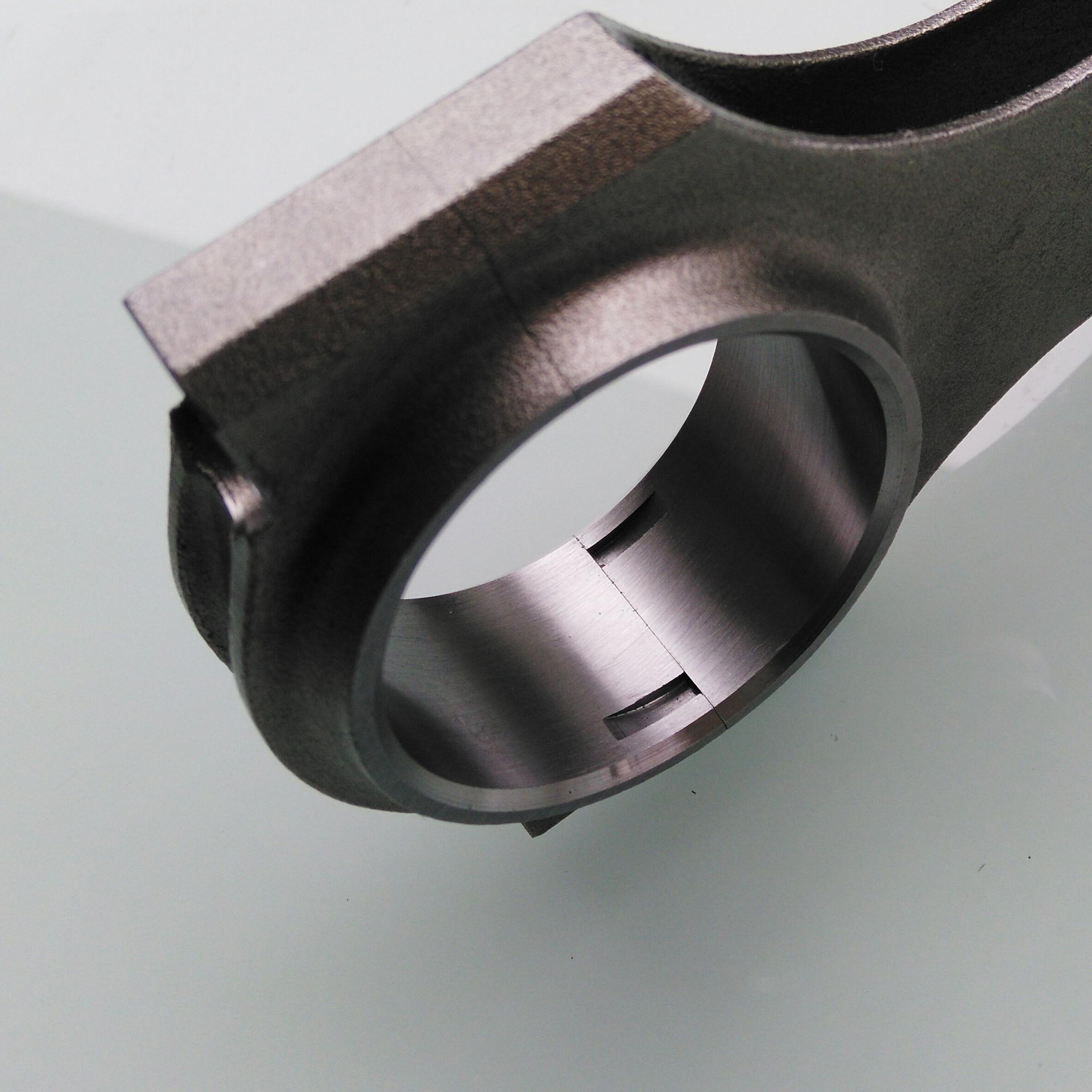

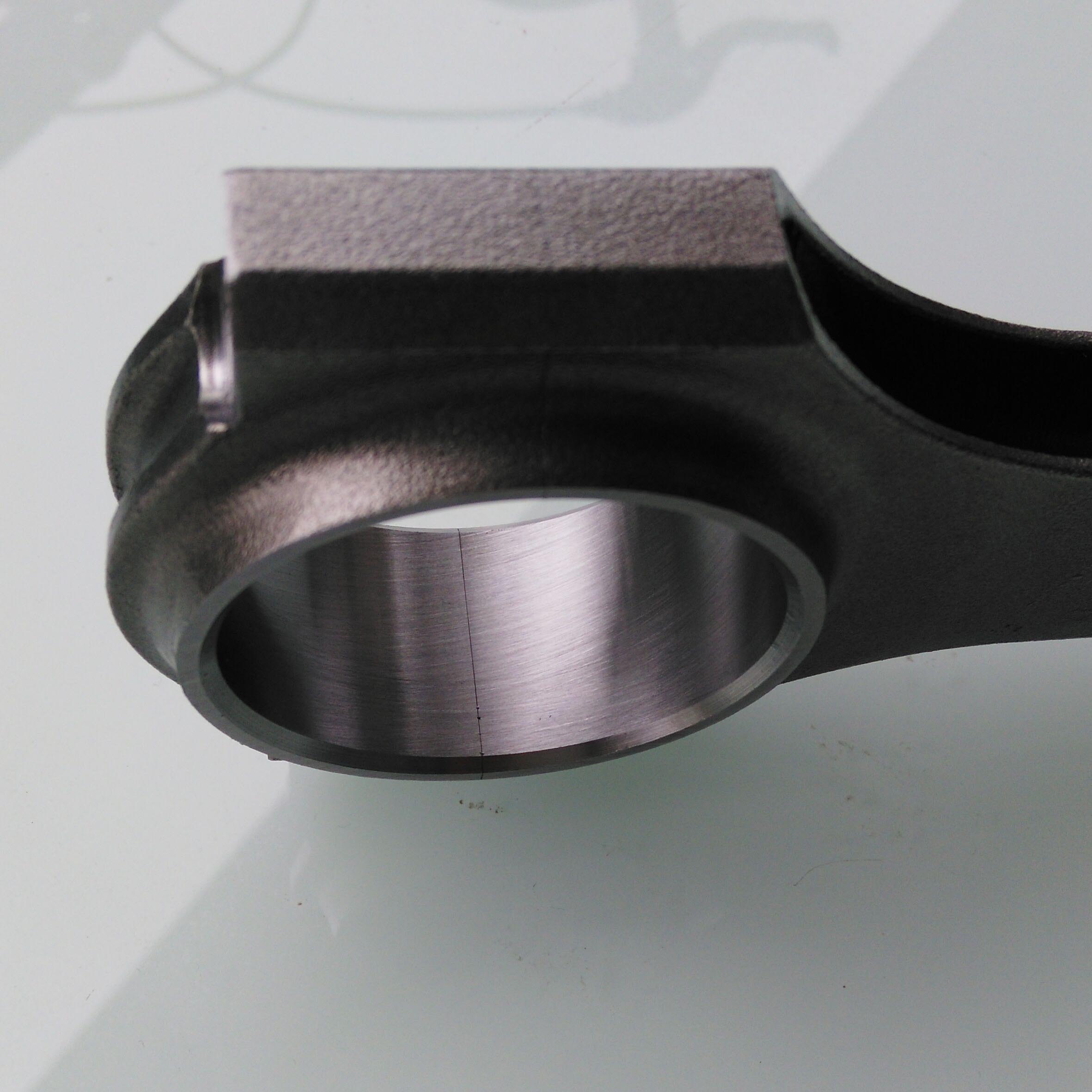

Volvo SWVA31 forged connecting rods conrods
- Volvo connecting rod
- volovo engine
- Forged 4340
- Is customized
- Product description: Volvo SWVA31 forged connecting rods conrods
Product introduction
Key Features
1.Materials is high tensile 4340 forged steel.
2.Each rod is multi-stage heat-treated,3.X-rayed,
4.Sonic-tested,
5.Magnafluxed,
6.100 percent machined,
7.Shot-peened to stress-relieve the metal.
8.Precision cap alignment sleeves to positively locate each rod cap,
9.Aluminium bronze bushings for floating pin models,
10. Hardness is HRC33-38.
11.Bolts tesile strength
Style no | Engine model | pcs/set | (mm)c-c | B/E bore | S/E bore | B/E W | S/E W | bolt |
Vol-027 | 4 | 152 | 52 | 23.02 | 29.5 | 24.8 | 3/8" | |
Vol-028 | 8230 | 4 | 149 | 52 | 23.02 | 29.6 | 24.8 | 3/8" |
Vol-029 | 152-23-52 | 4 | 152 | 52 | 23.01 | 29.75 | 24.8 | 3/8" |
Vol-030 | 158-23-52 | 4 | 160.80 | 52 | 23.01 | 29.75 | 24.8 | 3/8" |
Vol-031 | 152-23-52 | 4 | 158 | 52 | 23.02(23) | 29.5 | 24.8(25) | 3/8'' |
Vol-032 | SWVA31 | 4 | 139.5 | 53 | 23 | 25.7 | 25.7 | 3/8" |
Vol-033 | SWVA31 | 5 | 143 | 53 | 23 | 25.7 | 25.7 | 3/8" |
Vol-034 | SWVA31 | 4 | 143 | 53 | 23 | 25.7 | 25.7 | 3/8" |
Vol-035 | SWVA31 | 5 | 147 | 53 | 21 | 25.7 | 25.7 | 3/8" |
Vol-036 | 149-24-58 | 4 | 149 | 58 | 24 | 29.75 | 29.75 | 7/16" |
Vol-037 | 4 | 152 | 52 | 23.02 | 25.67 | 24.8 | 3/8" | |
Vol-038 | B23 | 4 | 160 | 58 | 23.566 | 29.75 | 29.75 | 7/16" |
Vol-039 | B23 | 4 | 160 | 58 | 23.566 | 29.75 | 24.8 | 7/16" |
Vol-040 | B23 | 4 | 145 | 58 | 24 | 29.75 | 24.8 | 7/16" |
Vol-041 | B230 | 4 | 160 | 52 | 23.566 | 24.75 | 28 | 7/16" |
Vol-042 | B230 | 4 | 160 | 52 | 21 | 29.75 | 24.8 | 7/16" |
Vol-043 | 4 | 157 | 52 | 23.01 | 29.75 | 24.8 | 7/16" | |
Vol-044 | 4 | 154 | 52 | 23.01 | 29.75 | 24.8 | 7/16" | |
Vol-045 | 4 | 161 | 52 | 21.01 | 29.75 | 21 | 7/16" | |
Vol-046 | 4 | 160 | 52 | 20.01 | 29.75 | 21 | 7/16" | |
Vol-047 | 4 | 158 | 52 | 21.01 | 29.75 | 21 | 7/16" | |
Vol-048 | 160 | 4 | 160 | 52 | 23 | 29.85 | 29.85 | 7/16" |
Vol-049 | 4 | 152 | 52 | 23.01 | 29.75 | 23.5 | 3/8" | |
Vol-050 | B230 | 4 | 160 | 52 | 23.566 | 29.75 | 24.8 | 7/16" |
Vol-051 | STV | 4 | 152 | 53.7 | 23 | 24.15 | 19 | 3/8" |
Vol-052 | AR2395 | 4 | 154 | 57 | 25 | 26.4 | 22 | 3/8" |
Vol-053 | AR239000 | 4 | 147 | 56 | 24 | 26.4 | 26.4 | 3/8" |
Price: for the latest price, please feel free to contact us.
Payment:T/T ,Paypal
Quality: Stable and reliable
Strict QC management
Certification: ISO/TS16949 and ISO14001
Beam Style:H-beam/I-beam
Bushing:Bronze bushing
Rod Wrist Pin Style:Floating/ Press Fit
Packaging Details:Rust preventing oil packing,Plastic, Cardboard,Carton,Iron case,Wooden case.
Delivery Detail:30days
