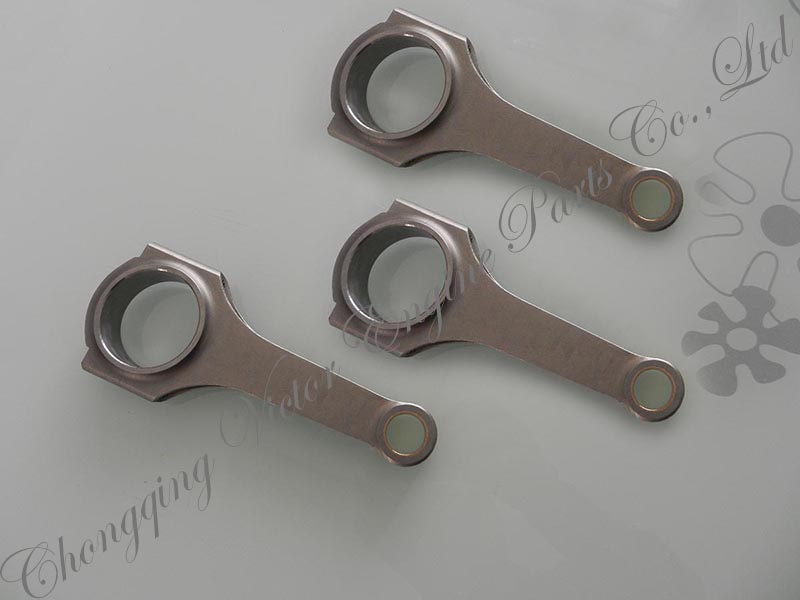

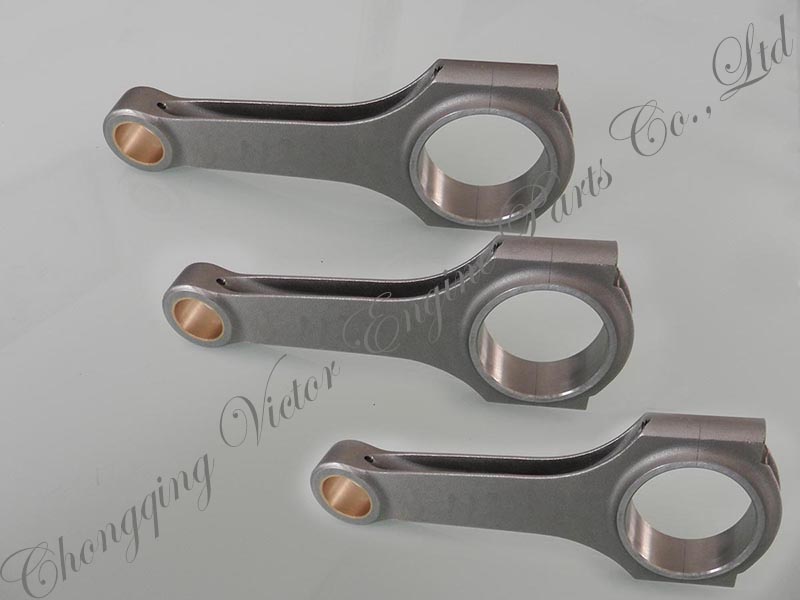

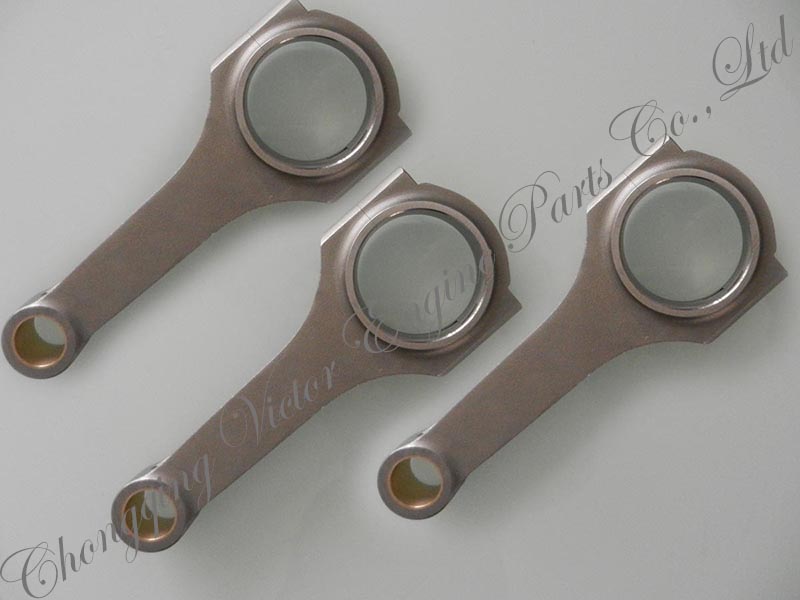

Yamaha TMAX 530 Turbo connecting rods conrods
- Racing connecting rods
- Forged 4340 steel
- H-beam
- Is customized
- Product description: Yamaha TMAX 530 Turbo connecting rods conrods
Product introduction
Product Key Feature
1.Materials is high tensile 4340 forged steel
2.Each rod is multi-stage heat-treated.
3.X-rayed,
4.Sonic-tested
5.Magnafluxed,
6.100 percent machined,
7.Shot-peened to stress-relieve the metal.
8.Precision cap alignment sleeves to positively locate each rod cap,
9.Aluminium bronze bushings for floating pin models,
10. Hardness is HRC33-38

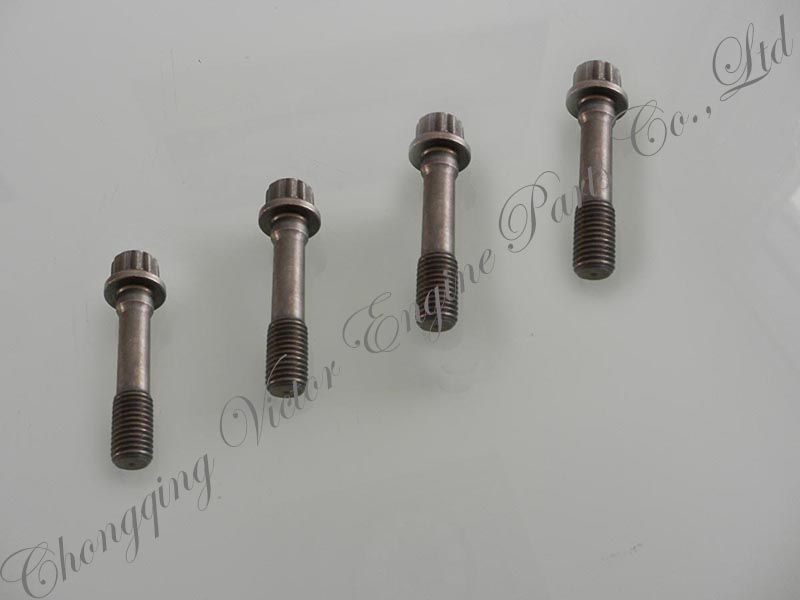

11.Bolts tesile strength with 228,500 psi.
<
Application
Yamaha TMAX 530 Turbo
Style number
YAM004
Beam style
H-beam
Material
Forged 4340 steel
Tolerance
Sets weight match +/-1 gram
Quantity
1 set of 2 pieces
Warranty
1 year
Specifications
Center to center length
123.500mm
Big end diameter
45.000mm
Small end diameter
16.000mm
Big end width
21.800mm
Small end width
21.800mm
Note: please double check dimensions with seller before purchase
If it is not what you want, please provide the main measurement to us, we can develop the rods for you according to your requirement.
Price: for the latest price, please feel free to contact us.
Quality: Stable and reliable
Strict QC management
Certification: ISO/TS16949 and ISO14001
Beam Style:H-beam/I-beam
Bushing:Bronze bushing
Rod Wrist Pin Style:Floating/ Press Fit
Packaging Details:Rust preventing oil packing,Plastic, Cardboard,Carton,Iron case,Wooden case.
Delivery Detail:30days
