Chevrolet 350 454 connecting rods
- .Materials is high tensile 4340 forged steel
- Each rod is multi-stage heat-treated,
- 100 percent machined
- Is customized

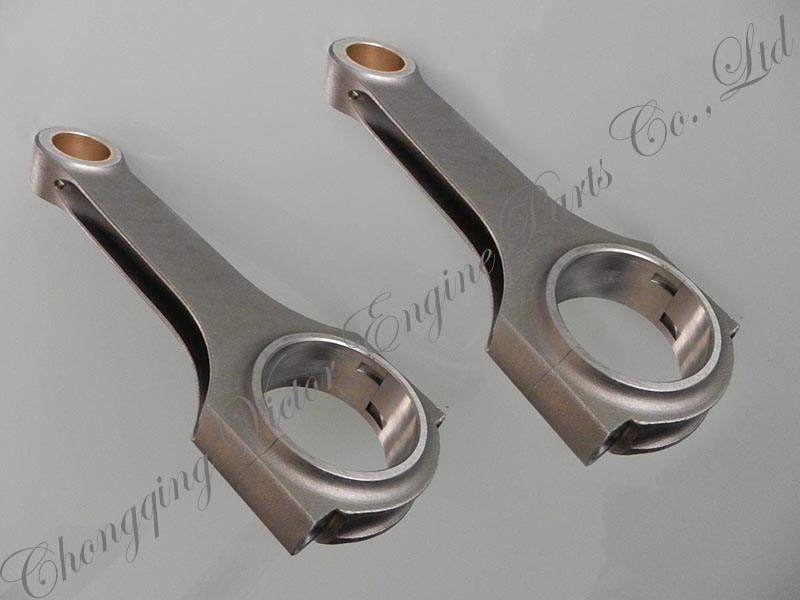

- Product description: Chevrolet 350, 454 H-beam connecting rods conrods
Product introduction
Key Products Features
1.Materials is high tensile 4340 forged steel.
2.Each rod is multi-stage heat-treated,
3.X-rayed,
4.Sonic-tested,
5.Magnafluxed,
6.100 percent machined,
7.Shot-peened to stress-relieve the metal.
8.Precision cap alignment sleeves to positively locate each rod cap,
9.Aluminium bronze bushings for floating pin models,
10. Hardness is HRC33-38.
11.Bolts tesile strength
Style No. | Engine model | pcs/set | (mm)c-c | B/E bore | S/E bore | B/E W | S/E W | bolt |
Chevrolet454 B-001 | 6.385" | 8 | 162.18 | 58.927 | 25.09 | 25.268 | 28.69 | 7/16" |
Chevrolet454 B-002 | 6.135" | 8 | 155.83 | 58.901 | 26.386 | 25.146 | 28.575 | 7/16" |
Chevrolet454 B-003 | 6.135" | 8 | 58.9 | 24.86 | 25.2 | 28.66 | 7/16" | |
Chevrolet454 B-004 | 6.385" | 8 | 162.18 | 58.901 | 26.386 | 25.146 | 28.575 | 7/16" |
Chevrolet454 B-005 | 6.135" | 8 | 155.83 | 58.9 | 24.8 | 25.2 | 28.68 | 7/16" |
Chevrolet454 B-006 | 6.535" | 8 | 165.99 | 59.05 | 25.15 | 28.69 | 28.69 | 7/16" |
Chevrolet454 B-007 | 6.535" | 8 | 165.989 | 58.94 | 25.14 | 25.26 | 28.6 | 7/16" |
Chevrolet454 B-008 | 6.7" | 8 | 170.18 | 58.901 | 26.386 | 25.146 | 28.575 | 7/16" |
Chevrolet454 B-009 | 6.8" | 8 | 195.58 | 58.901 | 26.386 | 25.146 | 28.575 | 7/16" |
Chevrolet454 B-010 | 7.1" | 8 | 180.34 | 59.05 | 25.15 | 28.69 | 28.69 | 7/16" |
Chevrolet350 S-001 | 350 6.0" | 8 | 152.4 | 56.385 | 23.47 | 23.876 | 26.92 | 7/16" |
Chevrolet350 S-002 | Chevy 5.627 | 8 | 142.93 | 65.53 | 23.55 | 23.876 | 26.92 | 7/16" |
Chevrolet350 S-003 | 6.125" | 6 | 155.58 | 56.515 | 22.987 | 25.273 | 25.273 | 3/8" |
Chevrolet350 S-004 | 6" | 6 | 152.4 | 56.515 | 22.987 | 21.844 | 21.844 | 3/8" |
Chevrolet350 S-005 | 6" | 8 | 152.4 | 56.515 | 23.55 | 23.876 | 26.92 | 7/16" |
Chevrolet350 S-006 | 5.850" | 8 | 148.59 | 56.515 | 23.55 | 23.876 | 26.92 | 7/16" |
Chevrolet350 S-007 | 6.125" | 8 | 155.58 | 56.515 | 23.55 | 23.876 | 26.92 | 7/16" |
Chevrolet350 S-008 | 5.565" | 8 | 141.35 | 56.515 | 23.55 | 23.876 | 26.92 | 7/16" |
Chevrolet350 S-009 | 5.7" | 8 | 144.78 | 56.515 | 23.55 | 23.876(24) | 26.92(25.1) | 7/16" |
Chevrolet350 S-010 | 6.2" | 8 | 157.48 | 56.515 | 23.55 | 23.876 | 26.92 | 7/16" |
Chevrolet350 S-011 | 6.25" | 8 | 158.75 | 56.515 | 23.55 | 23.876 | 26.92 | 7/16" |
Chevrolet350 S-012 | 350 5.7" | 8 | 144.78 | 56.358 | 23.47 | 23.876 | 26.92 | 7/16" |
Chevrolet350 S-013 | 350 5.744" | 8 | 145.898 | 55.067 | 22.0091 | 22.91 | 20.93 | 7/16" |
Chevrolet350 S-014 | 5.850" | 4 | 148.59 | 45 | 21 | 22.91 | 26.92 | 3/8" |
Chevrolet350 S-015 | 5.700",5.900" | 6 | 144.8 | 53.97 | 21.005 | 22.86 | 22.86 | 3/8" |
Chevrolet350 S-016 | 5.700",5.900" | 6 | 149.86 | 53.97 | 21.005 | 22.86 | 22.86 | 3/8" |
Chevrolet350 S-017 | 5.5 | 6 | 139.7 | 53.97 | 21.005 | 22.86 | 22.86 | 3/8" |
Chevrolet350 S-018 | 5.680" | 6 | 144.27 | 53.97 | 21.005 | 22.86 | 22.86 | 3/8" |
Price: for the latest price, please feel free to contact us.
Payment:T/T ,Paypal
Quality: Stable and reliable
Strict QC management
Certification: ISO/TS16949 and ISO14001
Beam Style:H-beam/I-beam
Bushing:Bronze bushing
Rod Wrist Pin Style:Floating/ Press Fit
Packaging Details:Rust preventing oil packing,Plastic, Cardboard,Carton,Iron case,Wooden case.
Delivery Detail:30days
If you can’t find the correct one, please contact us email: manager@victorengineparts.com, we will help find it for you or develop it for you.
