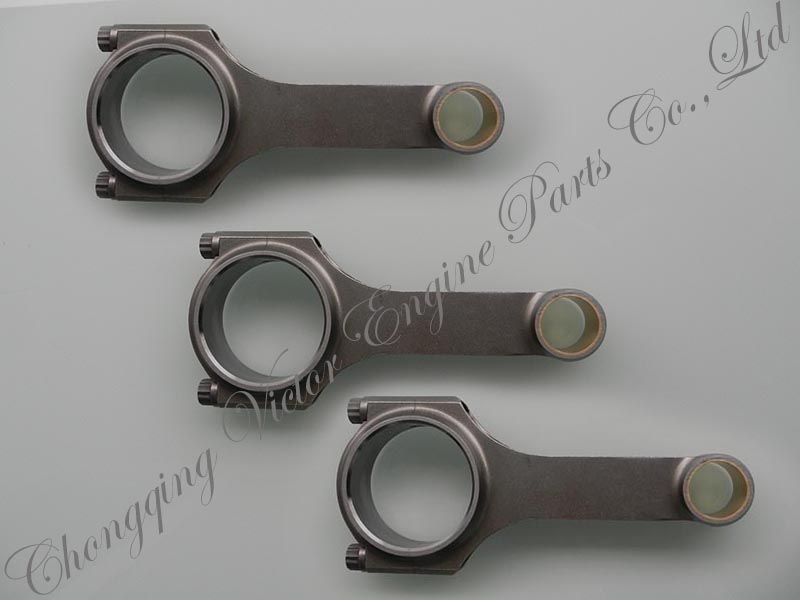

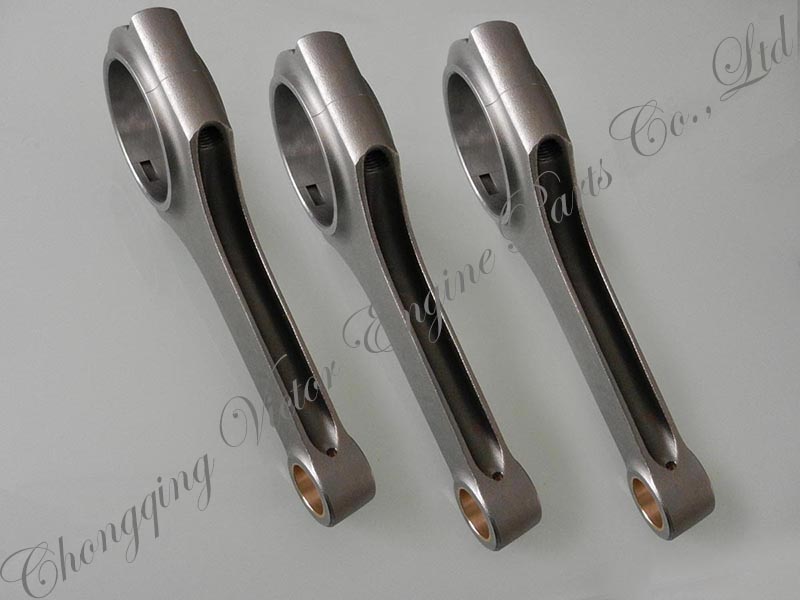

Suzuk DUK-AF2 GTV connecting rods conrods
- Suzuki connecting rods
- H-beam
- 4340 forged steel
- Is customized
- Product description: Suzuk DUK-AF2 GTV connecting rods conrods
Product introduction
Key Products Features
1.Materials is high tensile 4340 forged steel.
2.Each rod is multi-stage heat-treated,
3.X-rayed,
4.Sonic-tested,
5.Magnafluxed,
6.100 percent machined,
7.Shot-peened to stress-relieve the metal.
8.Precision cap alignment sleeves to positively locate each rod cap,
9.Aluminium bronze bushings for floating pin models,
10. Hardness is HRC33-38.
11.Bolts tesile strength
Style no | Engine model | pcs/set | (mm)c-c | B/E bore | S/E bore | B/E W | S/E W | bolt |
Suzuki-001 | CC123 | 4(5) | 123 | 45 | 18 | 22 | 22 | 5/16" |
Suzuki-002 | CC120 | 4 | 120 | 45 | 19 | 22 | 22 | 5/16" |
Suzuki-003 | 13G | 4 | 133.5 | 48.66 | 19.5 | 23.8 | 19 | 3/8" |
Suzuki-004 | 115.5 | 4 | 115.5 | 41 | 19 | 22.8 | 18 | 5/16" |
Suzuki-005 | Suzuki | 4 | 127 | 41 | 17 | 22 | 22 | 5/16" |
Suzuki-006 | no copper sleeve | 3 | 129.7 | 42 | 17.95 | 18.9 | 18.9 | 5/16" |
Suzuki-007 | Suzuki-1 | 4 | 138 | 45 | 20 | 23.9 | 18.9 | 5/16" |
Suzuki-008 | SUZUKI-2 | 4 | 136 | 45 | 20 | 23.8 | 18.8 | 5/16" |
Suzuki-009 | Suzuki | 4 | 130.1 | 45 | 20 | 18.88 | 18.88 | 5/16" |
Suzuki-010 | Suzuki-138 | 4 | 138 | 45 | 20 | 23.8 | 18.8 | 5/16" |
Suzuki-011 | DUK-AF2(Romeo) | 4 | 157 | 53.7 | 22 | 26.7 | 23.7 | 3/8" |
Suzuki-012 | Romeo 2000 | 4 | 158.8 | 53.7 | 22 | 26.7 | 20 | 3/8" |
Suzuki-013 | (Dodec-009) | 4 | 157 | 53.7 | 22 | 26.7 | 21.7 | 3/8" |
Suzuki-014 | (DUK-AF2)(G) | 4 | 157 | 53.7 | 22 | 26.7 | 23.7 | 3/8" |
Suzuki-015 | CR-ALF-156.03 | 4 | 156.03 | 53.7 | 22 | 26.7 | 23.7 | 3/8" |
Suzuki-016 | 2.0L duk-af2 | 4 | 148 | 53.7 | 22 | 26.7 | 23.7 | 3/8" |
Suzuki-017 | 2.0L duk-af2 | 4 | 156.8 | 53.7 | 22 | 26.7 | 23.7 | 3/8" |
Suzuki-018 | 2.0L duk-af2 | 4 | 156.03 | 53.7 | 22 | 26.7 | 23.7 | 3/8" |
Suzuki-019 | 2.0L duk-af2 | 4 | 158.8 | 53.7 | 22 | 26.7 | 23.7 | 3/8" |
Suzuki-020 | GTV | 156.97 | 53.7 | 22 | 26.75 | 22 | 3/8" |
Payment:T/T ,Paypal.
Quality: Stable and reliable
Strict QC management
Certification: ISO/TS16949 and ISO14001
Beam Style:H-beam/I-beam
Bushing:Bronze bushing
Rod Wrist Pin Style:Floating/ Press Fit
Packaging Details:Rust preventing oil packing,Plastic, Cardboard,Carton,Iron case.
Delivery Detail:30days
If you can’t find the correct one, please contact us email: manager@victorengineparts.com, we will help find it for you or develop it for you.
