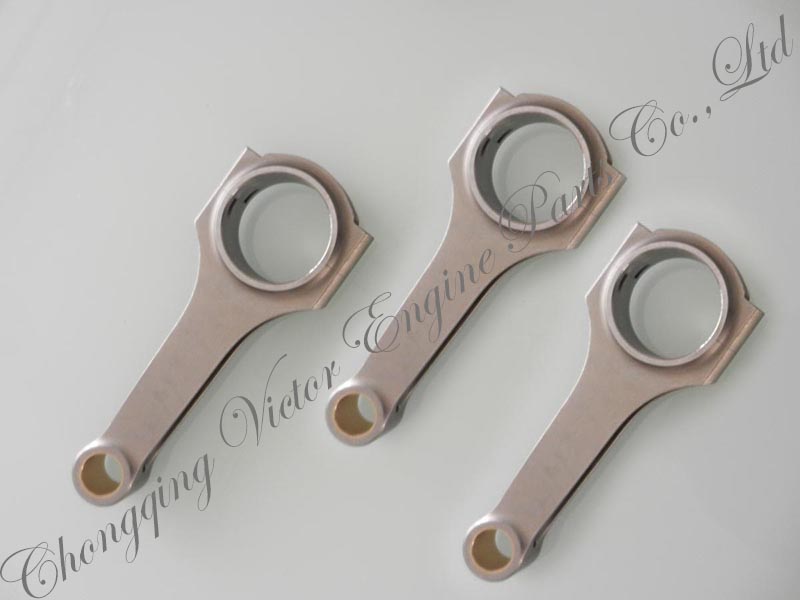

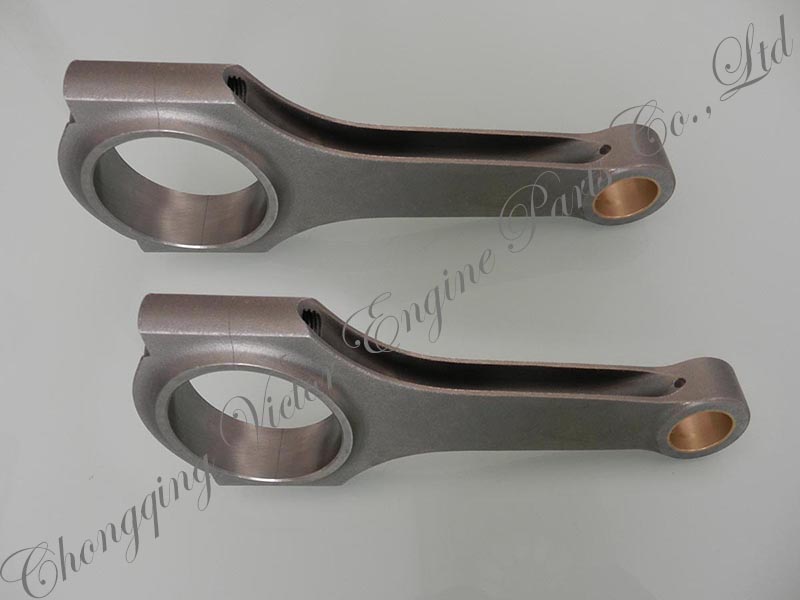

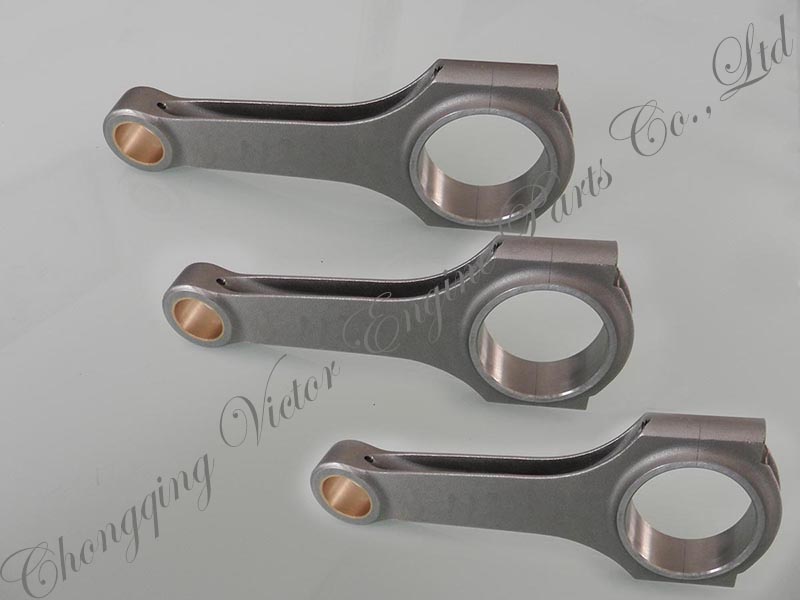

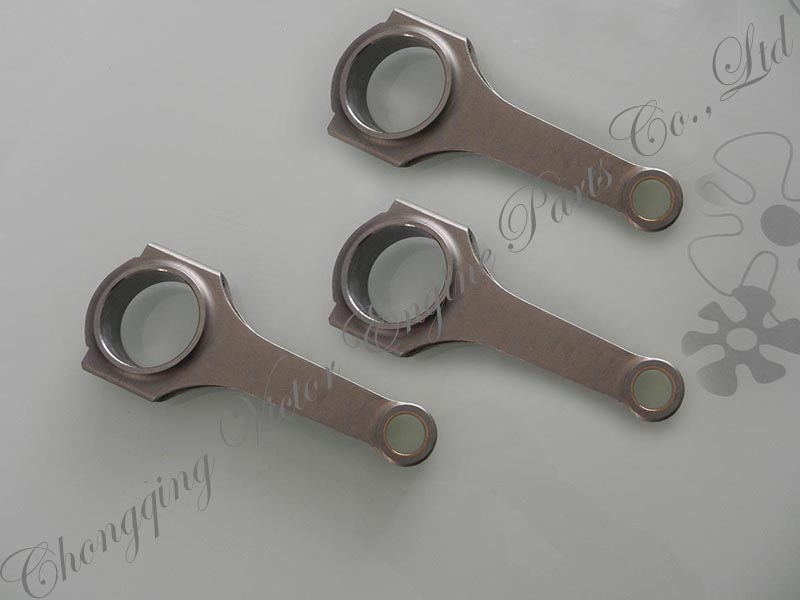

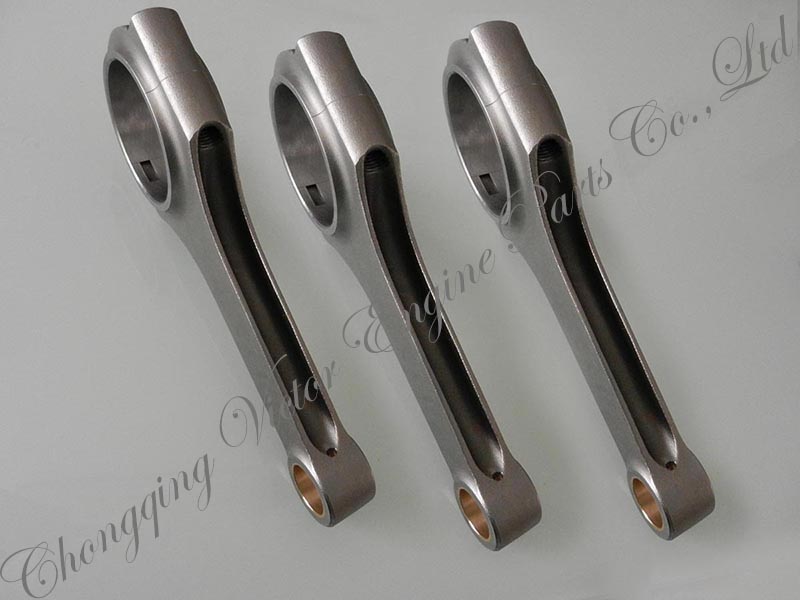

Chevrolet GM B93731B-4 B93036B-8 B93051B-8 B93737B-4 Ecotec GM Duramax 6600 LS1 V8 Saturn 99 & up connecting rods conrods
- Chevrolet connecting rod
- H-beam
- 4340 forged steel
- Is customized
- Product description: Chevrolet GM B93731B-4 B93036B-8 B93051B-8 B93737B-4 connecting rods conrods
Product introduction
Key Products Features
1.Materials is high tensile 4340 forged steel.
2.Each rod is multi-stage heat-treated,
3.X-rayed,
4.Sonic-tested,
5.Magnafluxed,
6.100 percent machined,
7.Shot-peened to stress-relieve the metal.
8.Precision cap alignment sleeves to positively locate each rod cap,
9.Aluminium bronze bushings for floating pin models,
10. Hardness is HRC33-38.
11.Bolts tesile strength
Application | For Chevrolet/GM | |||||
Style number | B93731B-4 B93036B-8 B93051B-8 B93737B-4 | |||||
Beam style | H-beam | |||||
Material | 4340 Forged steel | |||||
Tolerance | Sets weight match +/-1 gram | |||||
Warranty | 1 year | |||||
Measurement | ||||||
Style no | Description | CC | B/E bore | S/E bore | B/E width | S/E width |
B93731B-4 | GM Ecotec | 146.482 | 52.121 | 19.989 | X | X |
B93036B-8 | GM Duramax 6600 | 163.068 | 66.979 | 34.493 | X | X |
B93051B-8 | LS1 V8 | 154.94 | 56.515 | 23.978 | X | X |
B93737B-4 | Saturn 99 & up | 148.489 | 50.19 | 19.989 | X | X |
Price: for the latest price, please feel free to contact us.
Payment:T/T ,Paypal
Quality: Stable and reliable
Strict QC management
Certification: ISO/TS16949 and ISO14001
Beam Style:H-beam/I-beam
Bushing:Bronze bushing
Rod Wrist Pin Style:Floating/ Press Fit
Packaging Details:Rust preventing oil packing,Plastic, Cardboard,Carton,Iron case,Wooden case.
Delivery Detail:30days
