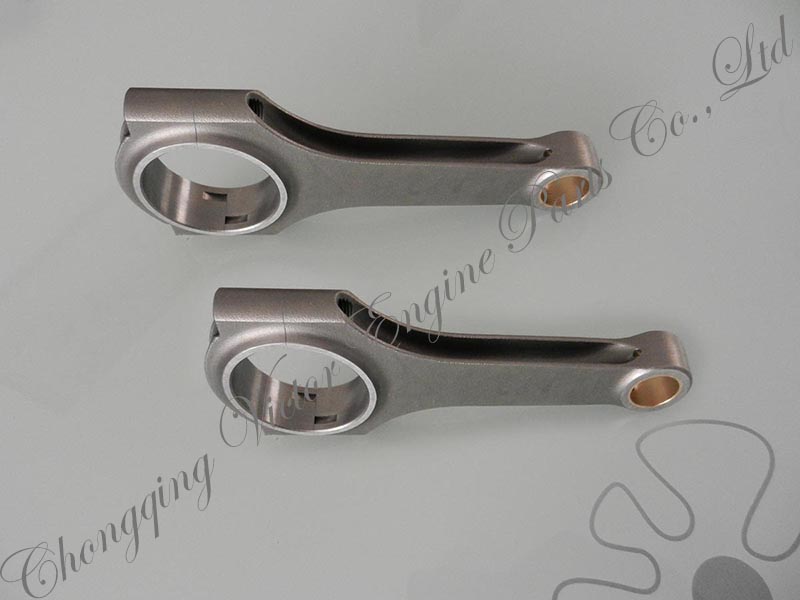

Honda B18 K20 D16 racing connecting rods conrods with high rpm
- Honda connecting rods
- H-beam / I-beam
- 4340 forged steel
- Is customized
- Product description: Honda B18 K20 D16 connecting rods conrods
Product introduction
Key Products Features
1.Materials is high tensile 4340 forged steel.
2.Each rod is multi-stage heat-treated,
3.X-rayed,
4.Sonic-tested,
5.Magnafluxed,
6.100 percent machined,
7.Shot-peened to stress-relieve the metal.
8.Precision cap alignment sleeves to positively locate each rod cap,
9.Aluminium bronze bushings for floating pin models,
10. Hardness is HRC33-38.
11.Bolts tesile strength
Measurement
Style no | Engine model | pcs/set | (mm)c-c | B/E bore | S/E bore | B/E W | S/E W | bolt |
Honda-001 | B18A 5.394" | 4 | 137.007 | 48 | 21.006 | 23.75 | 23.5 | 3/8" |
Honda-002 | B18C/GSR 5.433" | 4 | 137.922 | 48 | 21.006 | 21.79 | 23.5 | 3/8" |
Honda-003 | B18C/GSR 5.433" | 4 | 137.922 | 48 | 21.006 | 21.79 | 23.5 | 3/8" |
Honda-004 | B18C | 4 | 137.9 | 48 | 21.006 | 21.79 | 22.86 | 3/8" |
Honda-005 | B18C | 4 | 137.9 | 48 | 21 | 20.8 | 23.5 | 3/8" |
Honda-006 | B18C-Aluminium | 4 | 137.9 | 48 | 21 | 21.79 | 23.5 | 3/8" |
Honda-007 | Honda | 4 | 133.02 | 48 | 19 | 21.74 | 23.5 | 3/8" |
Honda-008 | B16A 5.290" | 4 | 134.37 | 48 | 21.006 | 23.75 | 23.5 | 3/8" |
Honda-009 | 142 | 4 | 142 | 48 | 21.006 | 23.75 | 21 | 3/8" |
Honda-010 | Honda | 4 | 134.37 | 48 | 21.006 | 23.25 | 20.5 | 3/8" |
Honda-011 | K20 5.464" | 4 | 138.983 | 51 | 21.996 | 19.81 | 19.81 | 3/8" |
Honda-012 | k20 (I-beam) | 4 | 139.014 | 48.006 | 21.996 | 23.75 | 21.59 | 3/8" |
Honda-013 | H22 5.485" | 4 | 139.32 | 48 | 21.006 | 21.79 | 23.75 | 3/8" |
Honda-014 | D16-I 5.458" | 4 | 138.633 | 48 | 19.006 | 22.81 | 18.19 | 3/8" |
Honda-015 | D16 5.394" | 4 | 137.007 | 48 | 19.006 | 22.81 | 18.19 | 3/8" |
Honda-016 | D16-H | 4 | 137.007 | 48 | 19.006 | 22.81 | 18.19 | 3/8" |
Honda-017 | B18B | 4 | 137.007 | 48 | 21.006 | 22.81 | 18.19 | 3/8" |
Honda-018 | D16-I CC136.4 | 4 | 136.4 | 48 | 19.006 | 22.81 | 18.19 | 3/8" |
Honda-019 | H22 5.636" | 4 | 143 | 51 | 22.006 | 23.75 | 23.5 | 3/8" |
Honda-020 | F20C 6.024" | 4 | 153 | 51 | 22.006 | 19.86 | 19.86 | 3/8" |
Honda-021 | F20 | 4 | 153 | 51 | 23.006 | 23.85 | 23.85 | 3/8" |
Honda-022 | F20 | 4 | 153 | 51 | 23 | 23.85 | 23.85 | 3/8“ |
Honda-023 | H23/B20A/F22 | 4 | 141.75 | 51 | 22.006 | 22.86 | 22.83 | 3/8" |
Honda-024 | Honda | 4 | 141.5 | 51 | 21.98 | 23.7 | 23.7 | 3/8" |
Honda-025 | K24A | 4 | 152 | 51 | 22.006 | 19.86 | 19.81 | 3/8" |
Honda-026 | Honda | 4 | 152 | 51.003 | 22.006 | 19.86 | 19.81 | 3/8" |
Honda-027 | D15B2 5.295" | 4 | 134.5 | 45 | 19.05 | 22.8 | 18 | 5/16" |
Honda-028 | Honda | 4 | 136.4 | 48 | 19 | 22.81 | 18.19 | 3/8" |
Honda-029 | USDM D15B2/B7 | 4 | 136.4 | 45 | 19.006 | 22.81 | 22.81 | 3/8" |
Honda-030 | 5.405" | 4 | 137.287 | 48 | 22 | 23.75 | 23.5 | 3/8" |
Honda-031 | 6.050" | 4 | 153.67 | 48 | 22 | 23.75 | 23.5 | 3/8" |
Honda-032 | 1.6CC | 4 | 137.008 | 48 | 21 | 22.656 | 19.9 | 3/8" |
Honda-033 | B18C-1 | 4 | 143.9 | 48 | 18 | 21.8 | 18 | 5/16" |
Honda-034 | B18C-2 | 4 | 137.9 | 48 | 21 | 21.8 | 18 | 5/16" |
Honda-035 | B18C-3 | 4 | 143.9 | 48 | 18 | 21.8 | 18 | 5/16" |
Honda-036 | CC140.4847 | 4 | 140.487 | 48 | 21 | 23.8 | 20 | 3/8" |
Honda-037 | K 124 | 4 | 124 | 48 | 20 | 21.75 | 21.75 | 3/8" |
Honda-038 | 149 | 4 | 149 | 43 | 18 | 17.8 | 17.8 | 3/8" |
Honda-039 | cc157.5 | 4 | 157.5 | 48 | 19.97 | 19.3 | 19.3 | 5/16" |
Price: for the latest price, please feel free to contact us.
Payment:T/T ,Paypal
Quality: Stable and reliable
Strict QC management
Certification: ISO/TS16949 and ISO14001
Beam Style:H-beam/I-beam
Bushing:Bronze bushing
Rod Wrist Pin Style:Floating/ Press Fit
Packaging Details:Rust preventing oil packing,Plastic, Cardboard,Carton,Iron case,Wooden case.
Delivery Detail:30days
If you can’t find the correct one, please contact us email: manager@victorengineparts.com, we will help find it for you or develop it for you.
