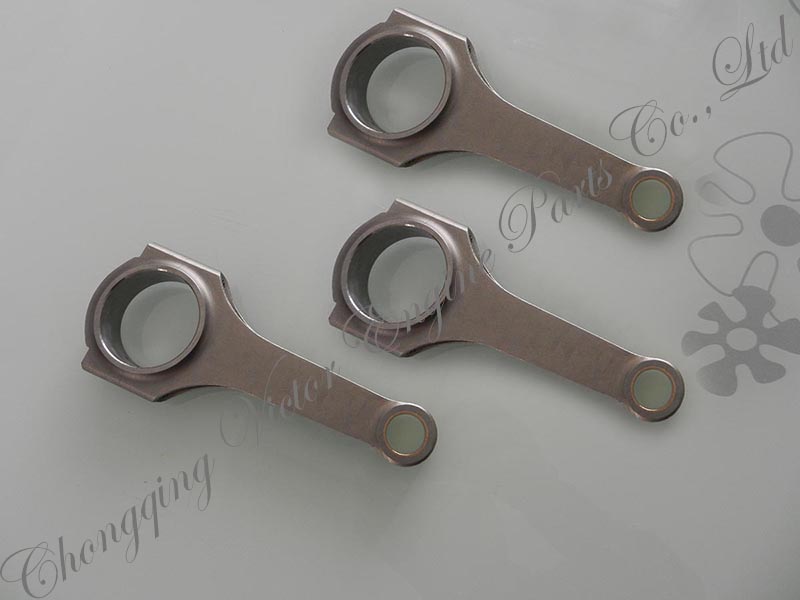

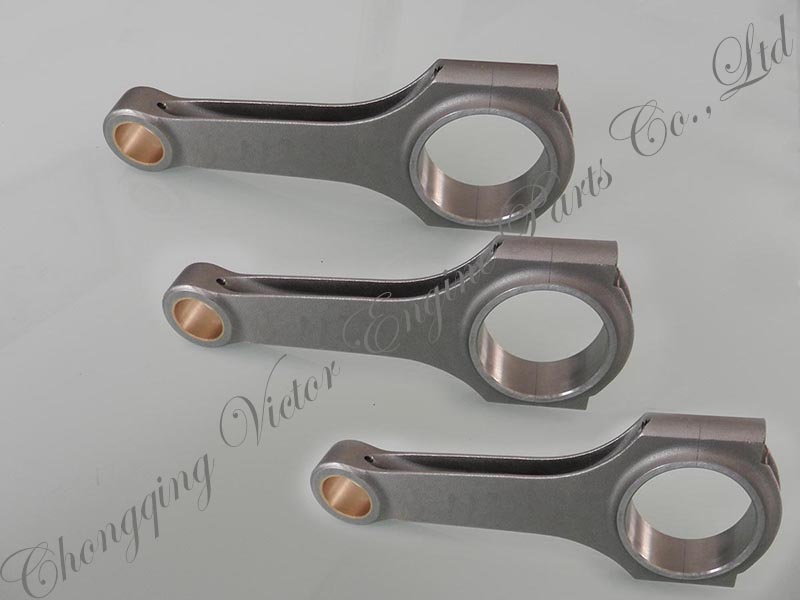

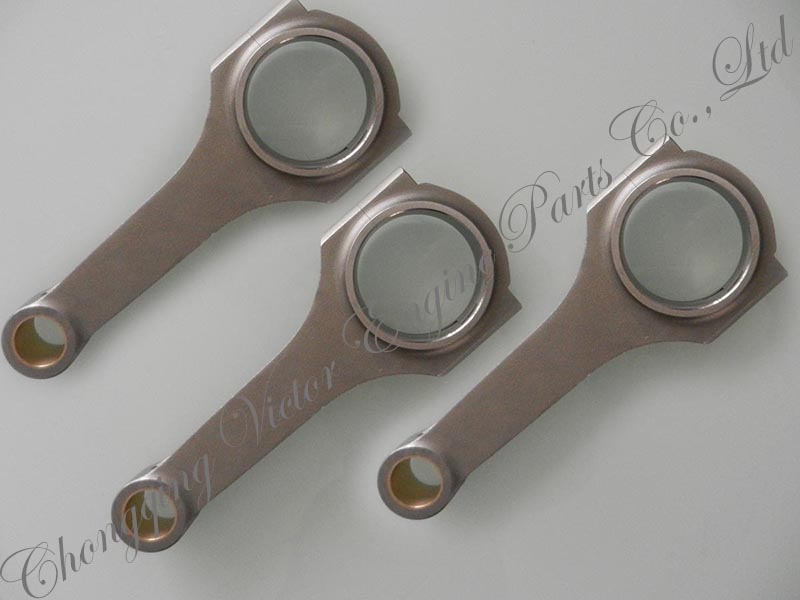

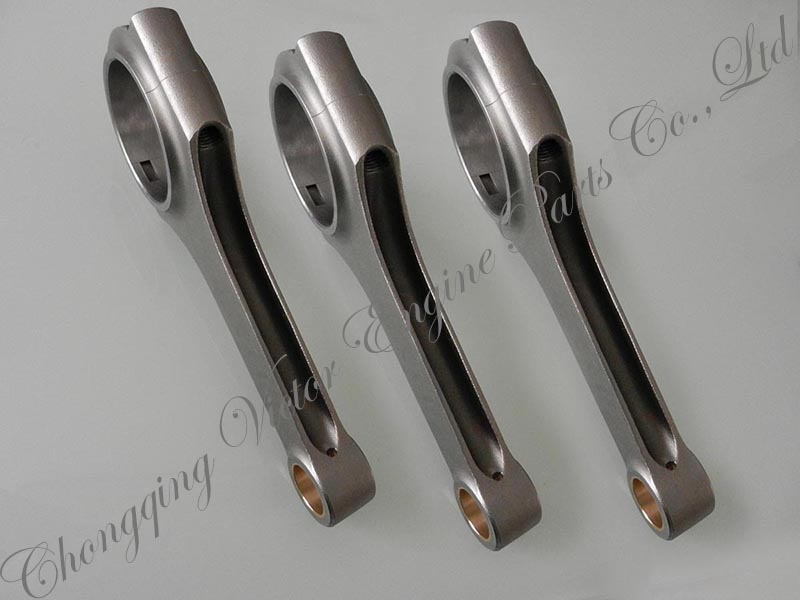

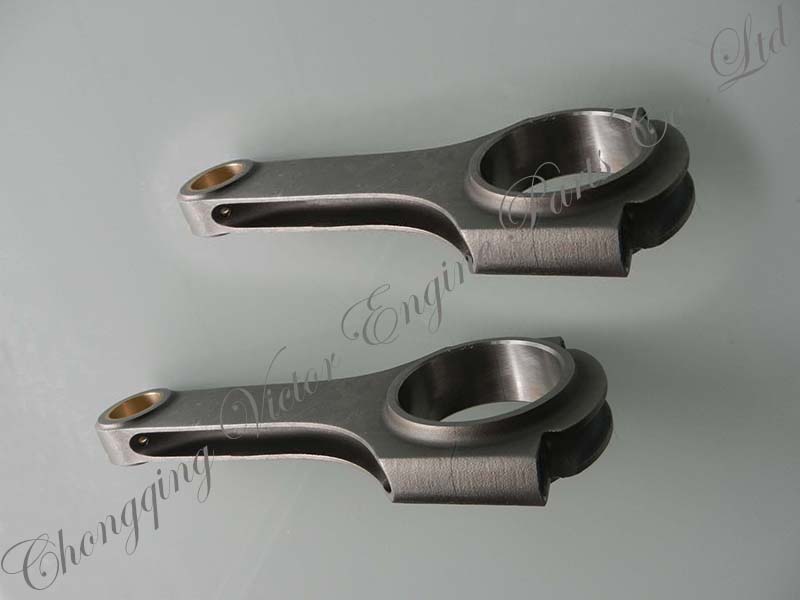

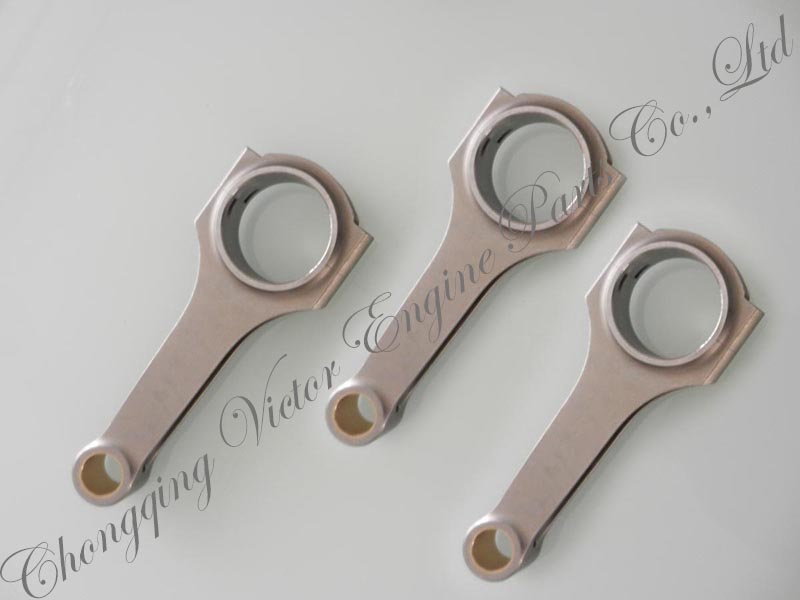

Mitsubishi EVO8 4G63 4G93 4G65 6G72 4G94 forged connecting rods conrods
- Mitsubishi connecting rods
- H-beam
- 4340 forged steel
- Is customized
- Product description: Mitsubishi EVO8 4G63 4G93 4G65 6G72 4G94 forged connecting rods conrods
Product introduction
Key Products Features
1.Materials is high tensile 4340 forged steel.
2.Each rod is multi-stage heat-treated,
3.X-rayed,
4.Sonic-tested,
5.Magnafluxed,
6.100 percent machined,
7.Shot-peened to stress-relieve the metal.
8.Precision cap alignment sleeves to positively locate each rod cap,
9.Aluminium bronze bushings for floating pin models,
10. Hardness is HRC33-38.
11.Bolts tesile strength
Style | DESCRIPTION | CYL | CC(mm) | B/E bore(mm) | S/E bore(mm) | B/E width(mm) | S/E width(mm) | Weight |
Mit-026 | EVO8 | 4 | 150.01 | 48.01 | 22.01 | 26.21 | 25.40 | 606 |
Mit-027 | 4G63 EVO | 4 | 150.01 | 48.01 | 28.35 | 28.35 | 25.40 | 635 |
Mit-028 | 4G63 EVO 2ND GEN | 4 | 150.01 | 48.01 | 26.21 | 26.21 | 25.40 | 608 |
Mit-029 | EVO X | 4 | 143.69 | 55.01 | 23.01 | 21.84 | 22.86 | 615 |
Mit-030 | MIRAGE 1.5L | 4 | 130.94 | 45.01 | 18.00 | 19.81 | 20.32 | 482 |
Mit-031 | FTO E-DE3A 2.0L | 6 | 125.50 | 46.01 | 19.00 | 19.81 | 19.81 | 455 |
Mit-032 | 4G92 1.6L | 4 | 119.99 | 48.01 | 19.00 | 21.74 | 21.74 | 467 |
Mit-033 | MIRAGE 1.8L,4G9 | 4 | 133.35 | 48.00 | 19.00 | 21.87 | 21.87 | 554 |
Mit-034 | 4G94 2.0 | 4 | 152.91 | 50.00 | 19.00 | 21.84 | 21.84 | 559 |
Mit-035 | 6A13T, 2.5L | 6 | 138.40 | 54.01 | 19.01 | 19.81 | 19.81 | 526 |
Mit-036 | 4G63 1ST GEN | 4 | 150.01 | 48.01 | 21.01 | 28.35 | 25.40 | 691 |
Mit-037 | 4B12 | 4 | 143.71 | 51.00 | 21.01 | 21.87 | 21.87 | 580 |
Mit-038 | 4B10 LANCER | 4 | 153.52 | 51.00 | 21.01 | 21.84 | 21.84 | 601 |
Mit-039 | 4G63 2ND GEN | 4 | 150.01 | 48.01 | 21.01 | 26.21 | 26.21 | 672 |
Mit-040 | 6G72 | 6 | 141.00 | 52.99 | 22.01 | 20.83 | 22.86 | 619 |
Mit-041 | G54B 2.6L | 4 | 165.81 | 56.01 | 22.01 | 29.85 | 27.94 | 746 |
Mit-042 | 6G74 3.5L DOHC | 6 | 153.16 | 58.01 | 22.01 | 20.83 | 22.86 | 650 |
Mit-043 |
4G65 1ST GEN |
4 | 150.01 | 48.01 | 23.57 | 28.35 | 28.35 |
|
