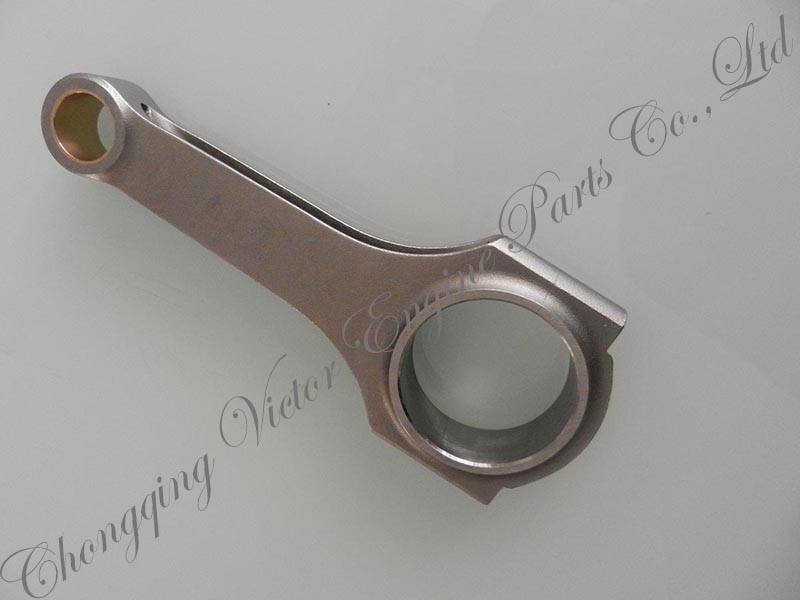

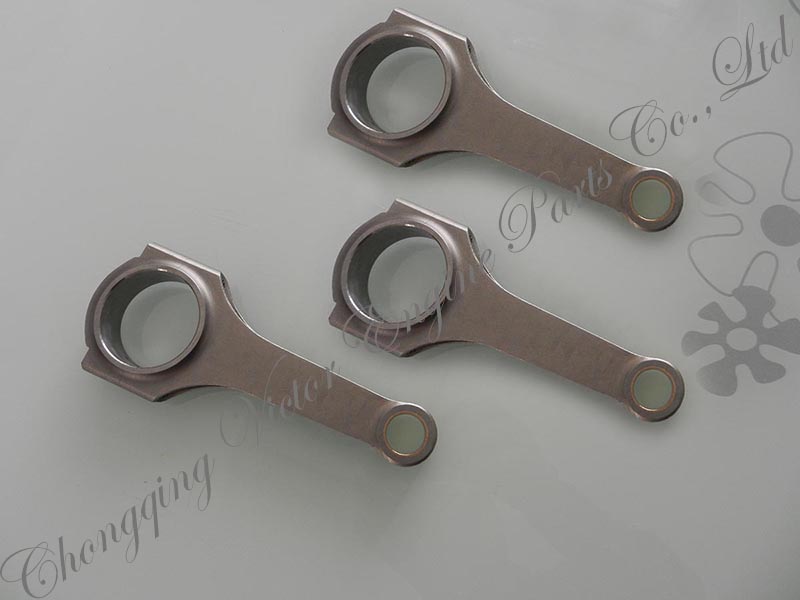

Opel CRC CRSP CIH OHC AXE D21 connecting rods conrods
- Opel connecting rods
- H-beam
- 4340 forged steel
- Is customized
- Product description: Opel CRC CRSP CIH OHC AXE D21 connecting rods conrods
Product introduction
Key Products Features
1.Materials is high tensile 4340 forged steel.
2.Each rod is multi-stage heat-treated,
3.X-rayed,
4.Sonic-tested,
5.Magnafluxed,
6.100 percent machined,
7.Shot-peened to stress-relieve the metal.
8.Precision cap alignment sleeves to positively locate each rod cap,
9.Aluminium bronze bushings for floating pin models,
10. Hardness is HRC33-38.
11.Bolts tesile strength
Style No. | Engine model | pcs/set | (mm)c-c | B/E bore | S/E bore | B/E W | S/E W | bolt |
Opel-001 | 143-21-52 | 4 | 143 | 52 | 21 | 26.3 | 21.9 | 3/8" |
Opel-002 | 143 | 4 | 143 | 52 | 21 | 26 | 26 | 3/8" |
Opel-003 | 143.1 | 4 | 143.1 | 52 | 21 | 26.3 | 21.9 | 3/8" |
Opel-004 | 159.5 | 4 | 149.5 | 52 | 21 | 26.3 | 21.9 | 3/8" |
Opel-005 | 143.1 | 4 | 143.1 | 52 | 21 | 26.3 | 21.9 | 3/8" |
Opel-006 | 143 | 4 | 143 | 52 | 21 | 26.3 | 26.3 | 3/8" |
Opel-007 | 142.1 | 4 | 142.1 | 52 | 21 | 26.3 | 21.9 | 3/8" |
Opel-008 | 148 | 4 | 148 | 52 | 21 | 26.3 | 21.9 | 3/8" |
Opel-009 | 146.7 | 4 | 146.7 | 52 | 18 | 26.3 | 21.9 | 3/8" |
Opel-010 | 144 | 4 | 144 | 52 | 20 | 26.3 | 19 | 3/8" |
Opel-011 | 143(X) | 4 | 143 | 52 | 21 | 26.3 | 21.9 | 3/8" |
Opel-012 | 143 protruding point | 4 | 143 | 52 | 21 | 26.3 | 21.9 | 3/8" |
Opel-013 | 143(X)-I | 4 | 143 | 52 | 21 | 26.3 | 21.9 | 3/8" |
Opel-014 | CRC-28L(Corsa) | 4 | 130.3 | 53 | 21 | 26.8 | 23.8 | 7/16" |
Opel-015 | Corsa | 4 | 129.75 | 46 | 18 | 22 | 18 | 5/16" |
Opel-016 | 129.75 | 4 | 129.5 | 46 | 19 | 21.8 | 20 | 5/16" |
Opel-017 | 1.6L | 4 | 129.75 | 46 | 19 | 21.9 | 20 | 3/8" |
Opel-018 | CRSP-136 (1.8L) | 4 | 135.95 | 50.6 | 22 | 24.95 | 24.95 | 3/8" |
Opel-019 | CRS-16 (CIH) | 4 | 141.5 | 55 | 22 | 24.8 | 24.8 | 3/8" |
Opel-020 | CRS-16 (CIH) | 4 | 141.5 | 55 | 22 | 24.8 | 24.8 | 3/8" |
Opel-021 | CRS-15(CIH)(3.0L) | 4(6) | 134 | 55 | 22 | 24.8 | 24.8 | 3/8" |
Opel-022 | CRS-17 | 4 | 144 | 55 | 22 | 24.8 | 24.8 | 3/8" |
Opel-023 | Opel | 4 | 136.5 | 55 | 22.02 | 24.8 | 24.8 | 3/8" |
Opel-024 | CIH 128 | 4 | 128 | 55 | 22 | 24.85 | 24.85 | 3/8" |
Opel-025 | Opel | 4 | 140.1 | 55 | 21.02 | 24.8 | 24.8 | 3/8" |
Opel-026 | Opel | 4 | 136.5 | 55 | 21.02 | 24.8 | 24.8 | 3/8" |
Opel-027 | 134 | 6 | 134 | 55 | 22 | 24.8 | 24.8 | 3/8" |
Opel-028 | Opel cih | 4 | 133.8 | 55 | 22 | 24.9 | 24.9 | 3/8" |
Opel-029 | Opel | 4 | 149 | 55 | 22.02 | 24.8 | 22 | 3/8" |
Opel-030 | CIH 5.669" | 4 | 144 | 55 | 22 | 24.8 | 24.8 | 3/8" |
Opel-031 | CRS-18 | 4 | 136.5 | 55 | 21 | 24.8 | 24.8 | 3/8" |
Opel-032 | 136.2 | 4 | 136.2 | 55 | 21 | 24.9 | 24.9 | 3/8" |
Opel-033 | 144 | 4 | 144 | 55 | 21 | 24.8 | 24.8 | 3/8" |
Opel-034 | 132 | 6 | 132 | 55 | 24 | 24.9 | 22 | 3/8" |
Opel-035 | 144 | 4 | 144 | 55 | 21 | 24.8 | 24.8 | 3/8" |
Opel-036 | CRS-19 | 4 | 148 | 52 | 21 | 26.3 | 21.9 | 3/8" |
Opel-037 | 148 | 6 | 148 | 52 | 20.02 | 26.4 | 19 | 3/8" |
Opel-038 | 148 | 6 | 148 | 52 | 21 | 19.9 | 19.9 | 3/8" |
Opel-039 | 148 | 4 | 148 | 52 | 21 | 26.3 | 21.9 | 3/8" |
Opel-040 | 148 | 4 | 148 | 52 | 18 | 26.3 | 21.9 | 3/8" |
Opel-041 | CC144.5 | 4 | 145.5 | 60 | 24.005 | 25.8 | 25.8 | 3/8" |
Opel-042 | CC148 | 4 | 148 | 57.1 | 21 | 19.9 | 19.9 | 3/8" |
Opel-043 | C16XE | 4 | 135 | 46 | 17 | 21.88 | 16 | 3/8" |
Opel-044 | C16XE | 4 | 136.2 | 46.006 | 19 | 21.88 | 17 | 3/8" |
Opel-045 | Opel | 4 | 133.25 | 46.006 | 18 | 21.875 | 18 | 3/8" |
Opel-046 | Opel | 4 | 129.75 | 46.006 | 18 | 21.875 | 18 | 3/8" |
Opel-047 | CIH 148 | 6 | 148 | 57.1 | 21 | 19.9 | 19.9 | 3/8" |
Opel-048 | CIH 148 | 4 | 148 | 57.1 | 21 | 19.9 | 19.9 | 5/16" |
Opel-049 | 143 AXE DE21 | 4 | 143 | 52 | 21 | 26.3 | 21.9 | 3/8" |
Opel-050 | 148 AXE DE21 | 4 | 148 | 52 | 21 | 26.3 | 21.9 | 3/8" |
Opel-051 | 129.75 | 4 | 129.75 | 46 | 19 | 21.9 | 18 | 5/16" |
Opel-052 | OHC SPEC | 4 | 141 | 48.02 | 21 | 26.365 | 22 | 3/8" |
Opel-053 | opel 148 | 4 | 148 | 52 | 21 | 21.7 | 21.7 | 3/8" |
Opel-054 | 138.2-55 | 4 | 138.2 | 55 | 22 | 24.8 | 24.8 | 3/8" |
Price: for the latest price, please feel free to contact us.
Payment:T/T ,Paypal
Quality: Stable and reliable
Strict QC management
Certification: ISO/TS16949 and ISO14001
Beam Style:H-beam/I-beam
Bushing:Bronze bushing
Rod Wrist Pin Style:Floating/ Press Fit
Packaging Details:Rust preventing oil packing,Plastic, Cardboard,Carton,Iron case,Wooden case.
Delivery Detail:30days
If you can’t find the correct one, please contact us email: manager@victorengineparts.com, we will help find it for you or develop it for you.
