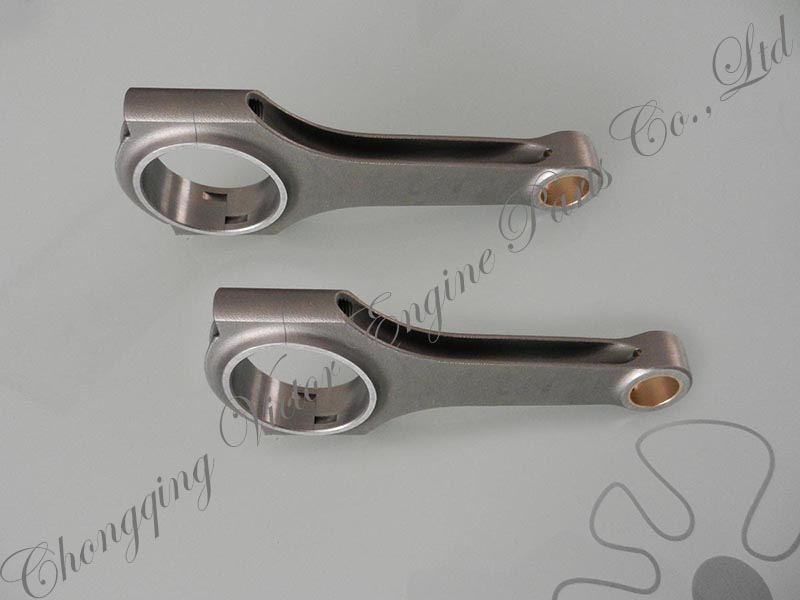

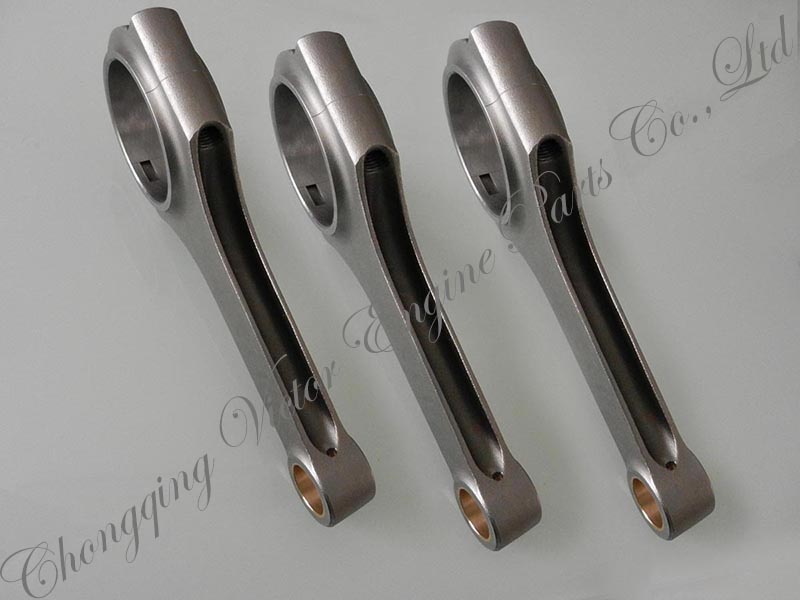

Peugeot RDSX XU9 PEU-4RS4 connecting rods conrods
- Peugeot connecting rods
- H-beam
- 4340 forged steel
- Is customized
- Product description: Peugeot RDSX XU9 PEU-4RS4 connecting rods conrods
Product introduction
Key Products Features
1.Materials is high tensile 4340 forged steel.
2.Each rod is multi-stage heat-treated,
3.X-rayed,
4.Sonic-tested,
5.Magnafluxed,
6.100 percent machined,
7.Shot-peened to stress-relieve the metal.
8.Precision cap alignment sleeves to positively locate each rod cap,
9.Aluminium bronze bushings for floating pin models,
10. Hardness is HRC33-38.
11.Bolts tesile strength
Style no | Engine model | pcs/set | (mm)c-c | B/E bore | S/E bore | B/E W | S/E W | bolt |
Peugeot-001 | RDSX-1 (137.75) | 4 | 137.75 | 48.66 | 18 | 23.8 | 20 | 5/16" |
Peugeot-002 | RDSX-1 | 4 | 139 | 48.66 | 18 | 23.8 | 20 | 5/16" |
Peugeot-003 | RDSX-1-A | 4 | 137.75 | 48.66 | 18 | 23.8 | 20 | 3/8" |
Peugeot-004 | Peugeot | 4 | 137.75 | 48.7 | 18.02 | 23.9 | 20 | 3/8" |
Peugeot-005 | RDSX-1-A | 4 | 139 | 48.66 | 18 | 23.95 | 20 | 3/8" |
Peugeot-006 | JT139-21 | 4 | 139 | 48.656 | 21.015 | 23.8 | 20 | 3/8" |
Peugeot-007 | 145 | 4 | 145 | 48.66 | 18 | 23.8 | 20 | 3/8" |
Peugeot-008 | RDSX-S | 4 | 133.6 | 48.66 | 19.5 | 23.8 | 24 | 5/16" |
Peugeot-009 | RDSX-S | 4 | 133.6 | 48.66 | 19.46 | 23.8 | 24 | 3/8" |
Peugeot-010 | RDSC-S | 4 | 133.6 | 48.66 | 20 | 23.8 | 24 | 3/8" |
Peugeot-011 | RDSX-S | 4 | 133.6 | 48.66 | 18 | 23.8 | 24 | 3/8" |
Peugeot-012 | RDSX-S1 | 4 | 133.6 | 48.66 | 18 | 23.8 | 24 | 5/16" |
Peugeot-013 | RDSX-S1-A(AL) | 4 | 133.6 | 48.66 | 18 | 23.8 | 24 | 3/8" |
Peugeot-014 | RDSX-S1-A | 4 | 133.6 | 48.66 | 18 | 23.8 | 24 | 3/8" |
Peugeot-015 | RDSX-S1 | 4 | 133.5 | 48.6 | 18 | 23.8 | 24 | 3/8" |
Peugeot-016 | 106 16V | 4 | 133.5 | 48.6 | 19.436 | 23.8 | 24 | 3/8" |
Peugeot-017 | 106 kit car | 4 | 133.6 | 48.66 | 19 | 23.75 | 23.75 | 3/8" |
Peugeot-018 | 106 kit car | 4 | 133.5 | 48.66 | 18 | 24 | 24 | 3/8" |
Peugeot-019 | 106 1.6 16V | 4 | 133.6 | 48.66 | 19.5 | 23.8 | 24 | 3/8" |
Peugeot-020 | XU9 | 4 | 156.5(133.5) | 48(48.66) | 21(19.5) | 24.3(24) | 19.5 | 3/8" |
Peugeot-021 | CR-PEU-133.5 | 4 | 133.5 | 48.66 | 19.5 | 23.8 | 19 | 3/8" |
Peugeot-022 | 106 kit car (I) | 4 | 133.6 | 48.66 | 18 | 23.75 | 23.75 | 3/8" |
Peugeot-023 | 206 S16 | 4 | 139.3 | 48.66 | 22 | 24.18 | 21 | 3/8" |
Peugeot-024 | 106 16V (I) | 4 | 133.6 | 48.66 | 19.5 | 23.8 | 24 | 3/8" |
Peugeot-025 | 106 16V | 4 | 133.6 | 48.66 | 19.5 | 23.8 | 24 | 3/8" |
Peugeot-026 | RD26-P | 4 | 139 | 48.66 | 18 | 24.2 | 15 | 3/8" |
Peugeot-027 | 98491001(RDSX-S) | 4 | 133.6 | 48.66 | 19.5 | 23.75 | 19 | 3/8" |
Peugeot-028 | 133.5-19.46 | 4 | 133.5 | 48.66 | 19.46 | 24 | 19.5 | 3/8" |
Peugeot-029 | PEU-158(4RS4) | 4 | 158 | 53.7 | 20.01 | 24.2 | 22 | 3/8" |
Peugeot-030 | PEU-XU10 | 4 | 158 | 53.7 | 18.01 | 24.2 | 22 | 3/8" |
Peugeot-031 | JXU158 | 4 | 158 | 53.7 | 20.015 | 24.2 | 22 | 3/8" |
Peugeot-032 | 306 KC L-158 | 4 | 158 | 53.7 | 20.01 | 24.3 | 19 | 3/8" |
Peugeot-033 | JXU163 | 4 | 163 | 53.7 | 18.015 | 24.2 | 18 | 3/8" |
Peugeot-034 | PEU-158 | 4 | 158 | 53.7 | 22 | 24.15 | 19.5 | 3/8" |
Peugeot-035 | PEU-4RS4 | 4 | 158 | 53.7 | 20 | 24.15 | 19.5 | 3/8" |
Peugeot-036 | PEU-4RS4 | 4 | 152 | 53.7 | 22 | 24.15 | 19.5 | 3/8" |
Peugeot-037 | P502-2-b897 | 4 | 152 | 53.7 | 22 | 24.15 | 19.2 | 3/8" |
Peugeot-038 | 153 | 4 | 153 | 53.7 | 22 | 24.2 | 19 | 3/8" |
Peugeot-039 | 1.6v 143.15 | 4 | 143.15 | 53.7 | 22 | 22.5 | 22.5 | 3/8" |
Peugeot-040 | 1.6v 140.8 | 4 | 140.8 | 48.655 | 22 | 22.5 | 22.5 | 3/8" |
Peugeot-041 | 1.6v 140.8 | 4 | 140.8 | 48.655 | 18 | 23.9 | 23.9 | 3/8" |
Peugeot-042 | 106 | 4 | 139 | 48.66 | 18.02 | 23.95 | 23.95 | 3/8" |
Peugeot-043 | 1.6v 137.75 | 4 | 137.75 | 48.655 | 18.02 | 23.9 | 23.9 | 3/8" |
Peugeot-044 | 106 | 4 | 157 | 48.66 | 18.02 | 23.95 | 23.95 | 3/8" |
Peugeot-045 | 1.6v 133.5 | 4 | 133.5 | 48.655 | 18 | 23.95 | 23.95 | 3/8" |
Peugeot-046 | Peugeot | 4 | 148 | 48.655 | 20.02 | 23.9 | 23.9 | 3/8" |
Peugeot-047 | cc143.35 | 4 | 143.35 | 53.7 | 22.02 | 22.5 | 22.5 | 3/8" |
Peugeot-048 | CC143 | 4 | 143 | 53.7 | 22 | 22.44 | 22.44 | 3/8" |
Peugeot-049 | 206 rc 148 | 4 | 148 | 48.66 | 21 | 23.9 | 17 | 3/8" |
Peugeot-050 | 162 | 4 | 162 | 48.65 | 18 | 24.3 | 19 | 3/8" |
Peugeot-051 | 306 | 4 | 163 | 48.655 | 20 | 24.3 | 19 | 3/8" |
Peugeot-052 | 137.75-18-48.655 | 4 | 137.75 | 48.655 | 18.01 | 24 | 20 | 3/8" |
Peugeot-053 | Peugeot | 4 | 137.75 | 48.656 | 18.015 | 23.8 | 18 | 3/8" |
Peugeot-054 | Peugeot | 4 | 143 | 53.695 | 22 | 24.2 | 25.5 | 3/8" |
Peugeot-055 | PEU-143 | 4 | 143 | 53.695 | 22 | 24.2 | 22.45 | 3/8" |
Price: for the latest price, please feel free to contact us.
Payment:T/T ,Paypal
Quality: Stable and reliable
Strict QC management
Certification: ISO/TS16949 and ISO14001
Beam Style:H-beam/I-beam
Bushing:Bronze bushing
Rod Wrist Pin Style:Floating/ Press Fit
Packaging Details:Rust preventing oil packing,Plastic, Cardboard,Carton,Iron case,Wooden case.
Delivery Detail:30days
If you can’t find the correct one, please contact us email: manager@victorengineparts.com, we will help find it for you or develop it for you.
