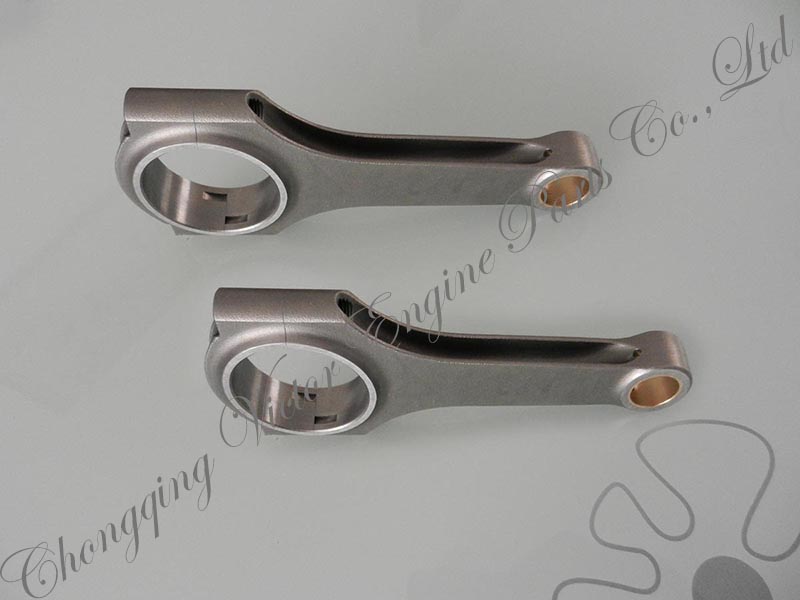

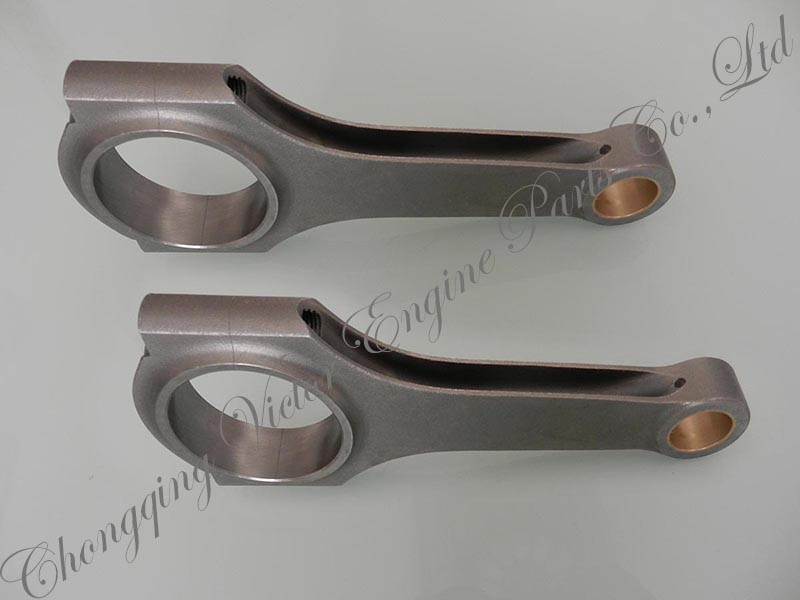

MGB MGA TWINCAM connecting rods conrods
- Materials is high tensile 4340 forged steel
- Each rod is multi-stage heat-treated
- 100 percent machined
- Is customized

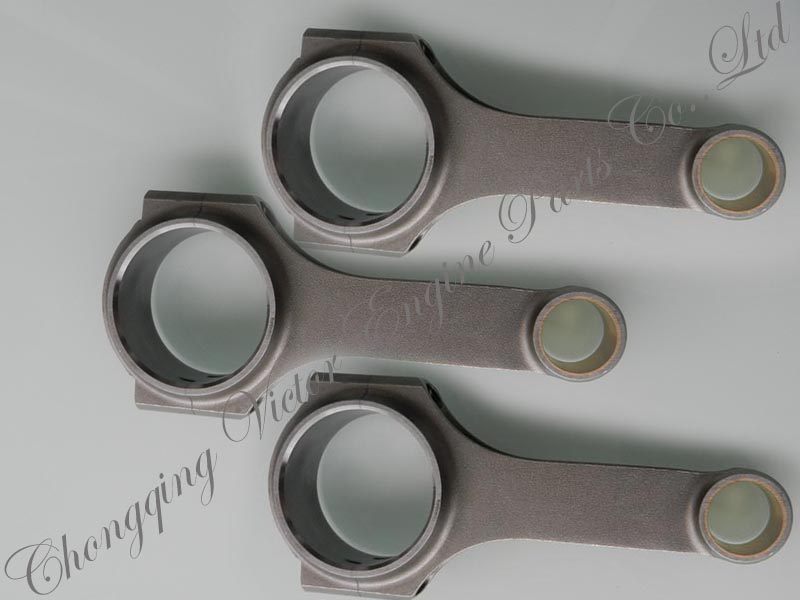

- Product description: MGA MGB H-beam forged conrods connecting rods
Product introduction
Key Products Features
1.Materials is high tensile 4340 forged steel.
2.Each rod is multi-stage heat-treated,
3.X-rayed,
4.Sonic-tested,
5.Magnafluxed,
6.100 percent machined,
7.Shot-peened to stress-relieve the metal.
8.Precision cap alignment sleeves to positively locate each rod cap,
9.Aluminium bronze bushings for floating pin models,
10. Hardness is HRC33-38.
11.Bolts tesile strength
Style no | Engine model | pcs/set | (mm)c-c | B/E bore | S/E bore | B/E W | S/E W | bolt |
MG-001 | MGB 6.500" | 4 | 165.1 | 51.338 | 20.62 | 25.3 | 25.4 | 3/8" |
MG-002 | MGA 6.500" | 4 | 165 | 51.3 | 19 | 26.16 | 26.16 | 3/8" |
MG003 | MGA | 4 | 165.10 | 51.34 | 19.05 | 30.73 | 22.23 |
MG004 | MGA | 4 | 165.10 | 51.34 | 20.64 | 30.73 | 22.23 |
MG005 | MGA TWINCAM | 4 | |||||
MG006 | MGB 3MAIN | 4 | |||||
MG007 | MGB 1.8L 5MAIN | 4 | 165.10 | 51.34 | 19.05 | 25.27 | 25.27 |
MG008 | MGC | 6 | |||||
MG009 | MG MIDGET 1098CC | 4 | 146.00 | 44.98 | 15.88 | 26.82 | 22.23 |
MG010 | MG MIDGET | 4 |
Price: for the latest price, please feel free to contact us.
Payment:T/T ,Paypal
Quality: Stable and reliable
Strict QC management
Certification: ISO/TS16949 and ISO14001
Beam Style:H-beam/I-beam
Bushing:Bronze bushing
Rod Wrist Pin Style:Floating/ Press Fit
Packaging Details:Rust preventing oil packing,Plastic, Cardboard,Carton,Iron case,Wooden case.
Delivery Detail:30days
