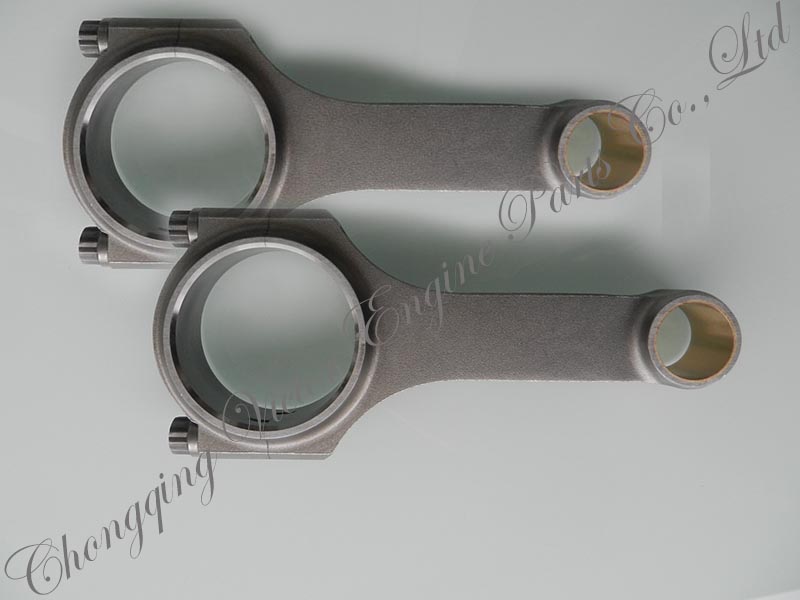

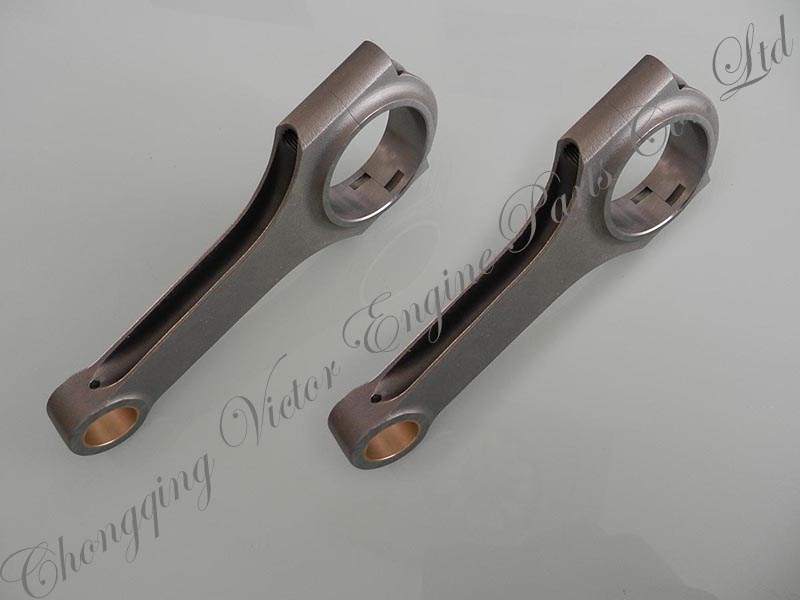

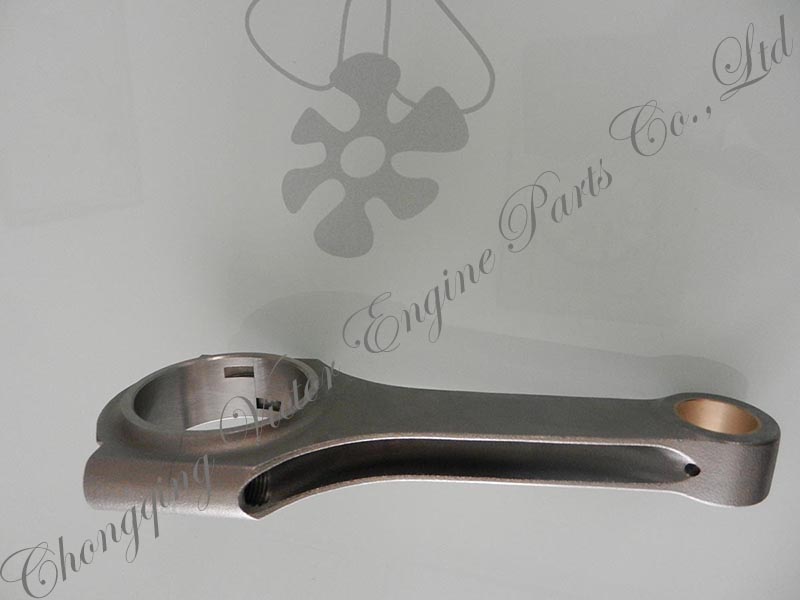

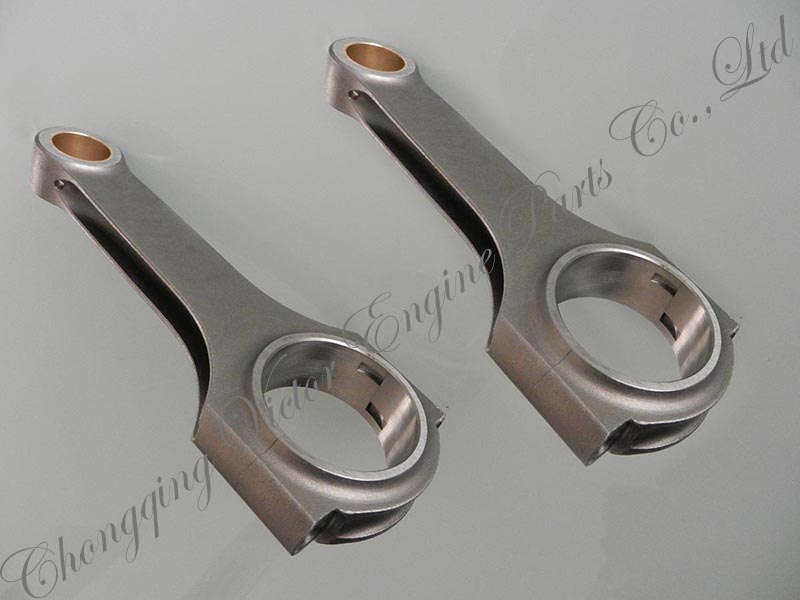

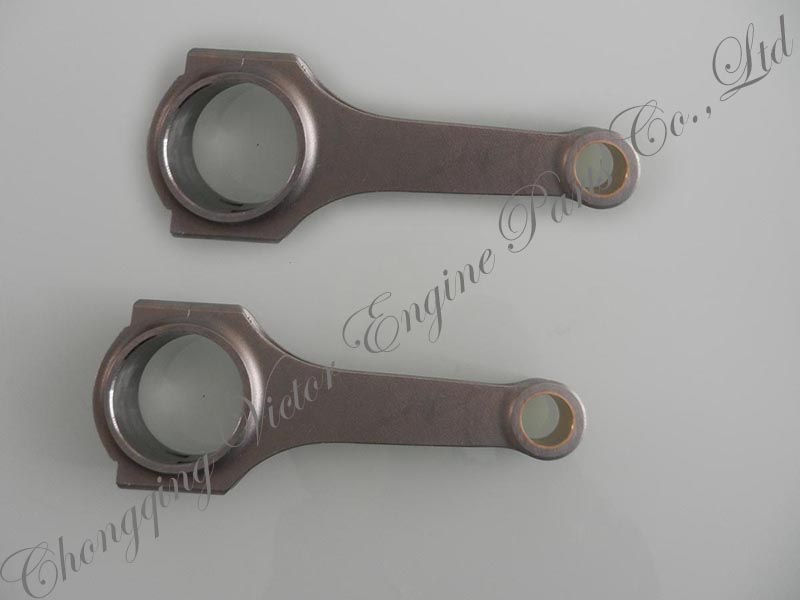

hayabusar AUT Hay forged conecting rods conrods
- Materials is high tensile 4340 forged steel
- Each rod is multi-stage heat-treated
- 100 percent machined
- Is customized
- Product description: hayabusar AUT Hay forged conecting rods conrods
Product introduction
Key Products Features
1.Materials is high tensile 4340 forged steel.
2.Each rod is multi-stage heat-treated,
3.X-rayed,
4.Sonic-tested,
5.Magnafluxed,
6.100 percent machined,
7.Shot-peened to stress-relieve the metal.
8.Precision cap alignment sleeves to positively locate each rod cap,
9.Aluminium bronze bushings for floating pin models,
10. Hardness is HRC33-38.
11.Bolts tesile strength
Style no | Engine model | pcs/set | (mm)c-c | B/E bore | S/E bore | B/E W | S/E W | bolt |
Hayabusar-001 | AUT(Hayabusar) | 4 | 119.5 | 41 | 20 | 21 | 21 | 5/16" |
Hayabusar-002 | Hay | 119.5 | 41 | 20.02 | 21 | 21 | 5/16" | |
Hayabusar-003 | Hay | 4 | 119.5 | 44.996 | 20 | 19.95 | 19.8 | 5/16" |
Hayabusar-004 | 119.5 | 4 | 119.5 | 41 | 20 | 21 | 21 | 5/16" |
Hayabusar-005 | 119.5 | 4 | 119.5 | 41 | 18 | 21 | 21 | 3/8" |
Hayabusar-006 | 117 | 4 | 117 | 41 | 20 | 21 | 21 | 5/16" |
Hayabusar-007 | Hay | 4 | 119.5 | 41 | 20 | 21 | 21 | 3/8" |
Price: for the latest price, please feel free to contact us.
Payment:T/T ,Paypal
Quality: Stable and reliable
Strict QC management
Certification: ISO/TS16949 and ISO14001
Beam Style:H-beam/I-beam
Bushing:Bronze bushing
Rod Wrist Pin Style:Floating/ Press Fit
Packaging Details:Rust preventing oil packing,Plastic, Cardboard,Carton,Iron case,Wooden case.
Delivery Detail:30days
