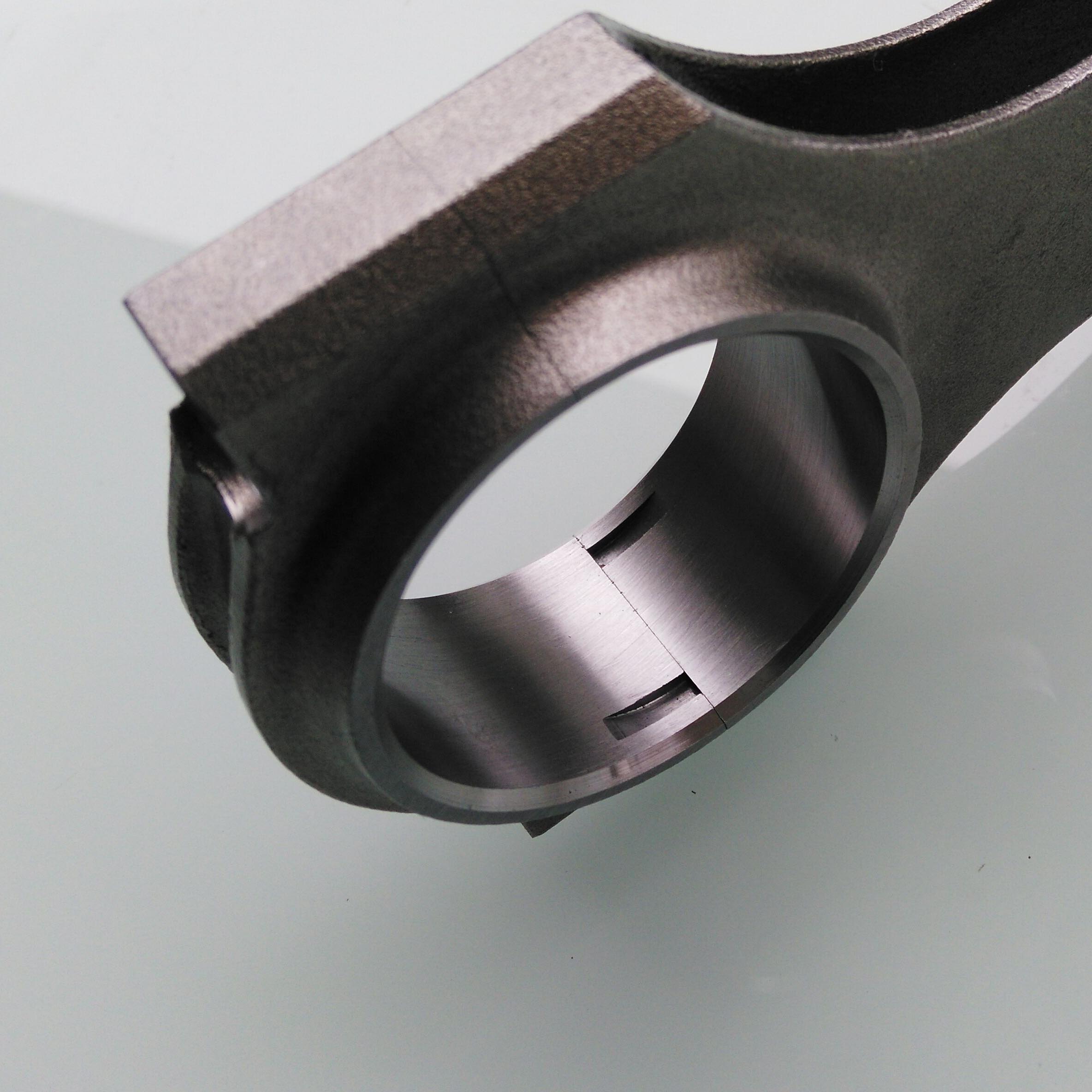

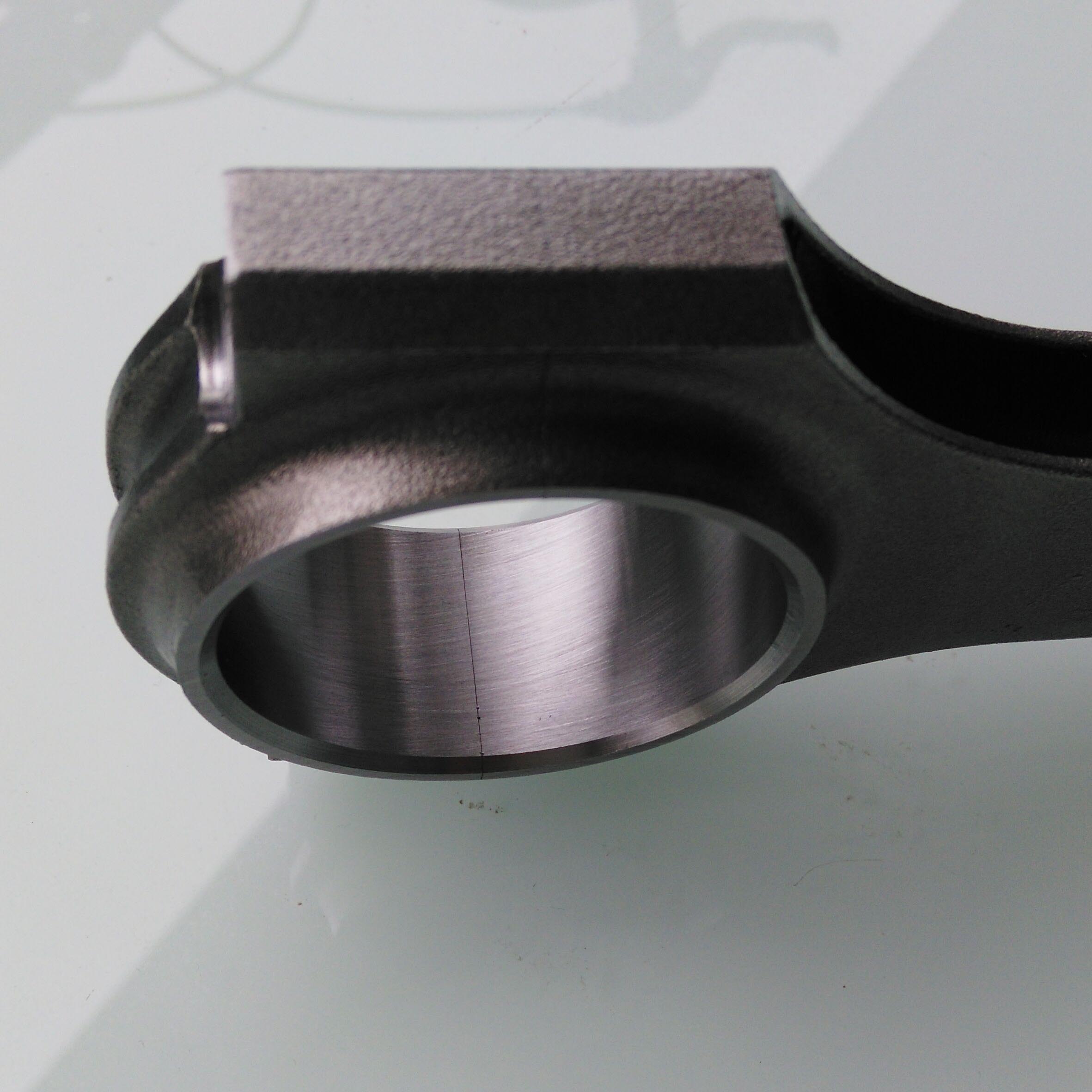

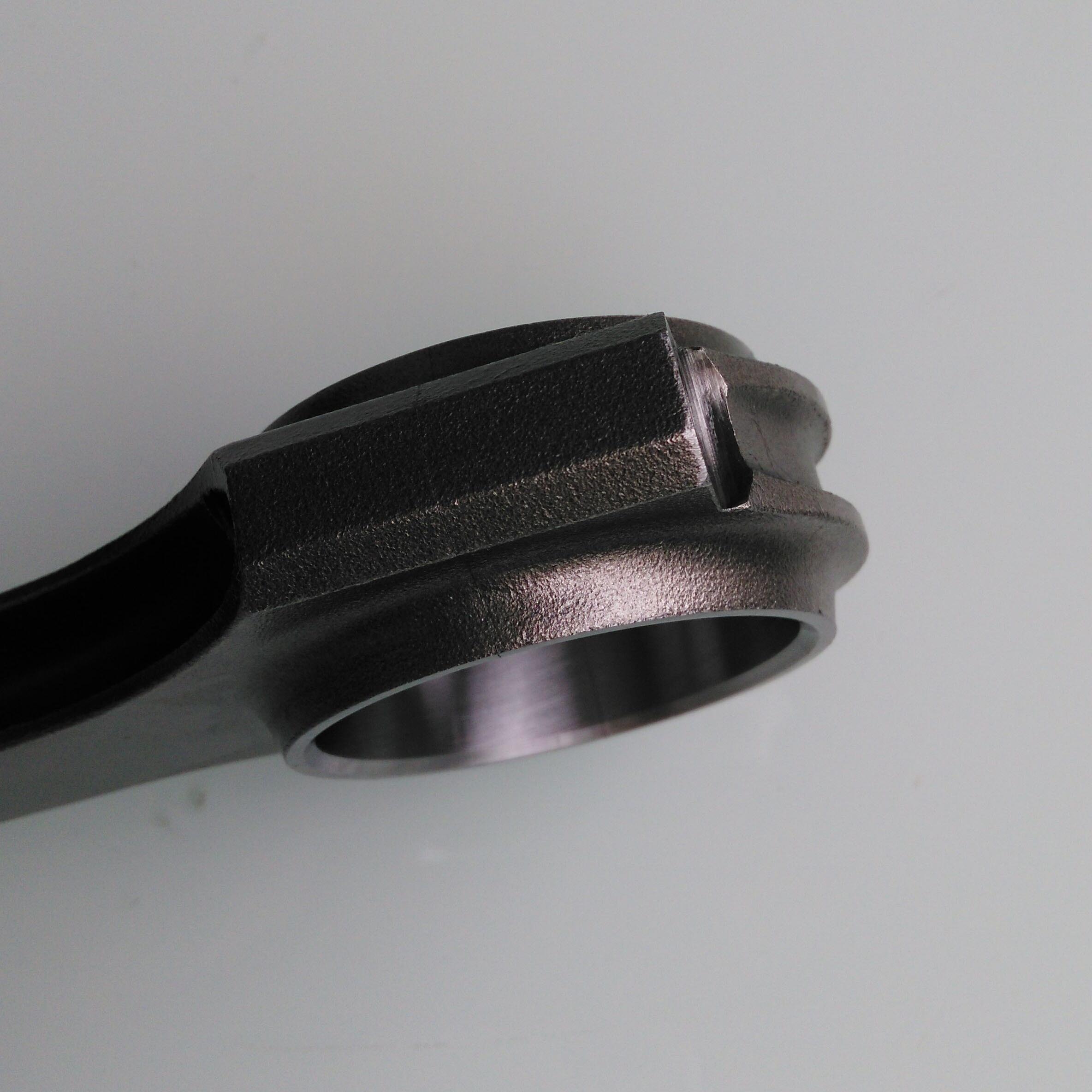

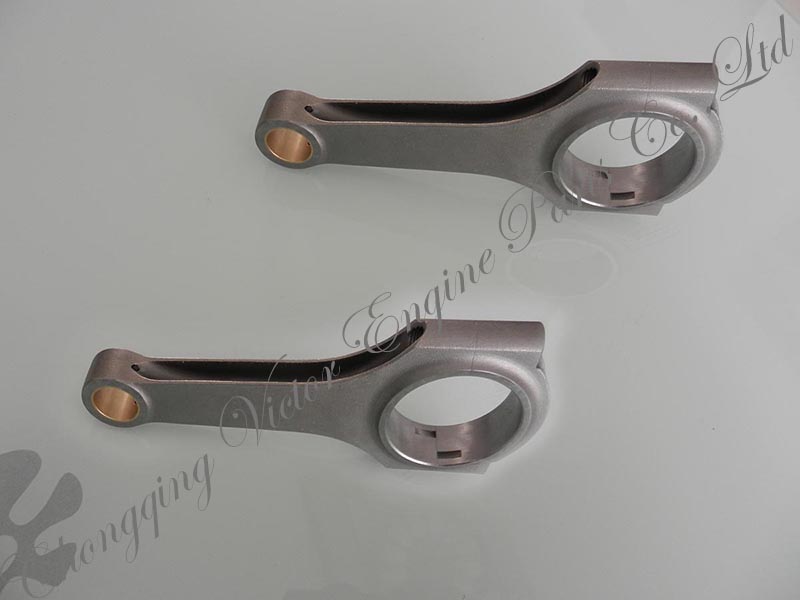

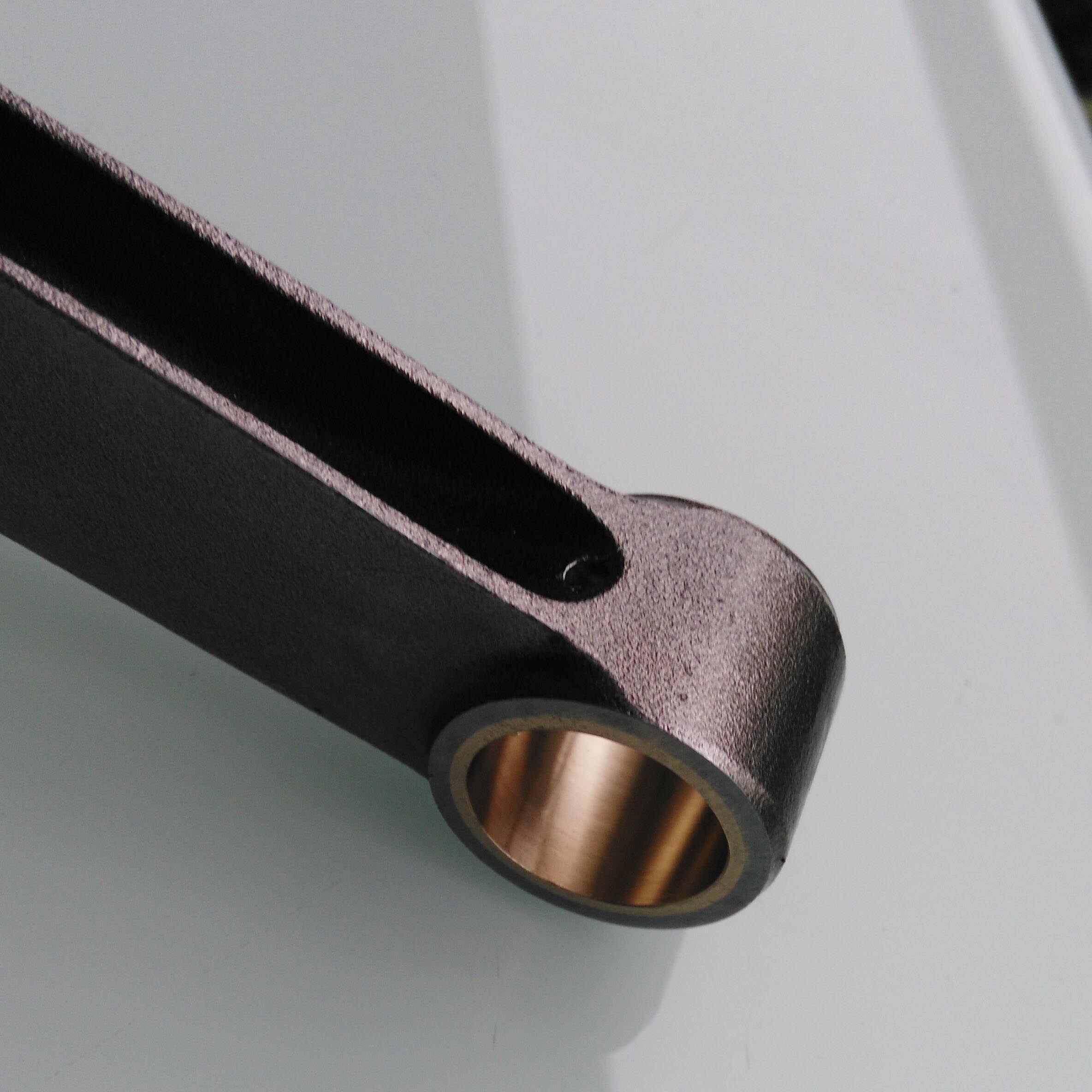

POLO ALH 1.4L H-beam connecting rods conrods
- H-beam racing connecting rods
- Forged 4340 steel
- POLO ALH 1.4L
- Customized connecting rods
- Product description: POLO ALH 1.4L H-beam connecting rods conrods
Product introduction
Product Key Feature
1.Materials is high tensile 4340 forged steel
2.Each rod is multi-stage heat-treated.
3.X-rayed,
4.Sonic-tested
5.Magnafluxed,
6.100 percent machined,
7.Shot-peened to stress-relieve the metal.
8.Precision cap alignment sleeves to positively locate each rod cap,
9.Aluminium bronze bushings for floating pin models,
10. Hardness is HRC33-38
11.Bolts tesile strength with 228,500 psi.
Application | for POLO ALH 1.4L engine | ||||||
Style number | FVW096 | ||||||
Beam style | H-beam | ||||||
Material | Forged 4340 steel | ||||||
Tolerance | Sets weight match +/-1 gram | ||||||
Quantity | 1 set of 4 pieces | ||||||
Warranty | 1 year | ||||||
Specifications | |||||||
Center to center length | 138.00mm | ||||||
Big end diameter | 50.61mm | ||||||
Small end diameter | 16.99mm | ||||||
Big end width | 19.91mm | ||||||
Small end width | 19.91mm | ||||||
Note: please double check dimensions with seller before purchase |
