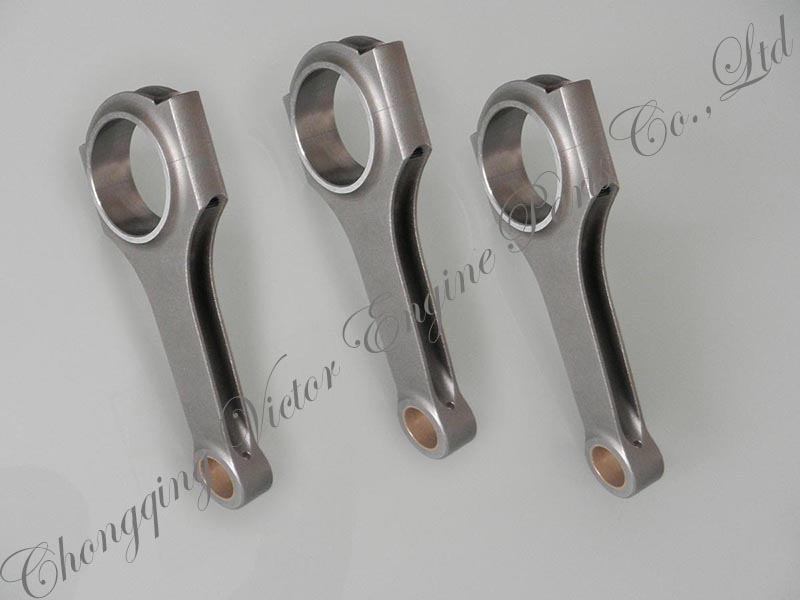

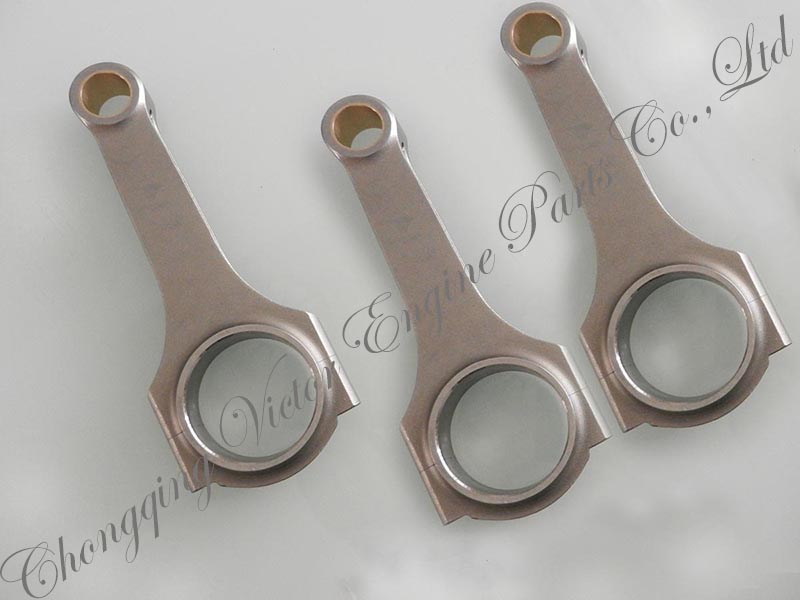

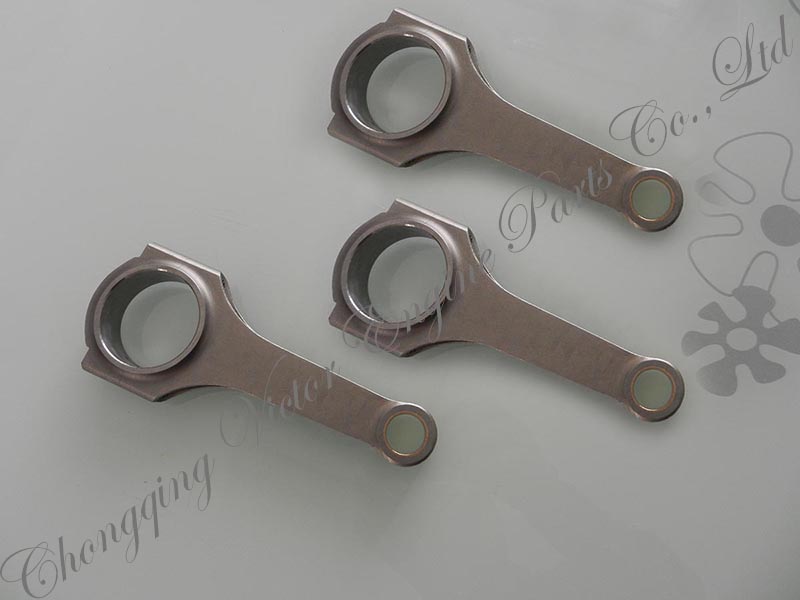

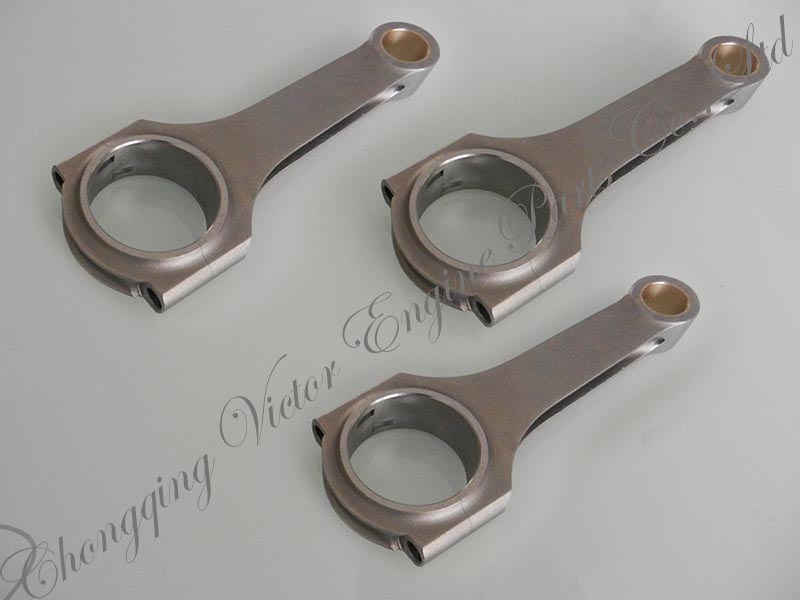

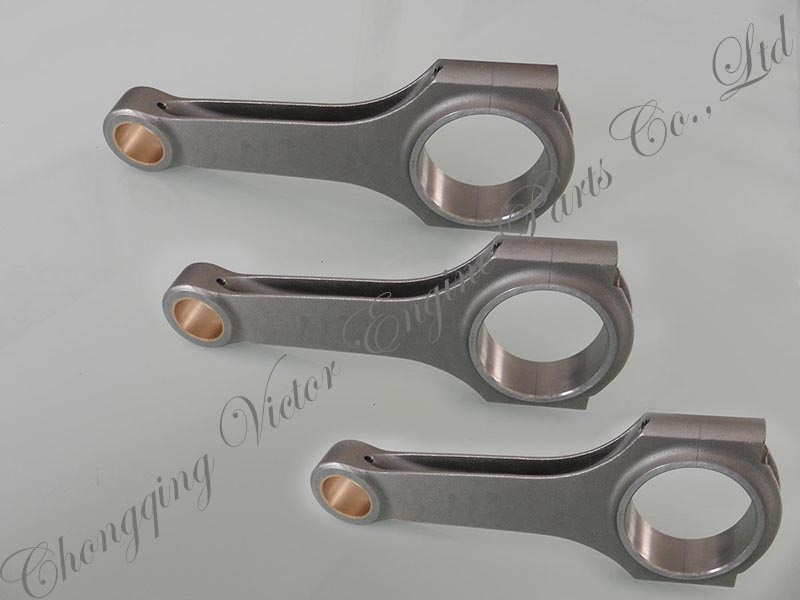

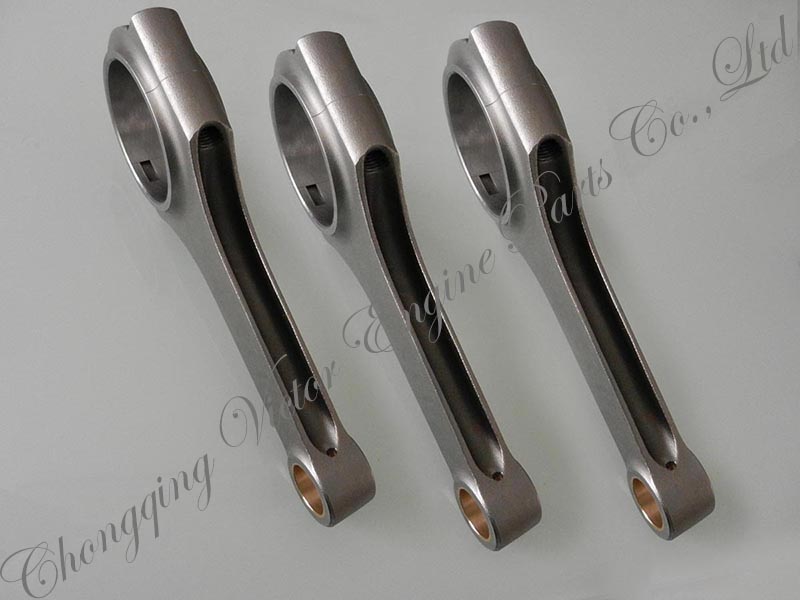

015BV17143 015BY10149 Honda D17 H22 connecting rods conrods
- Honda connecting rod
- H-beam/I-beam
- 4340 forged steel
- Is customized
- Product description: 015BT12137 015BV17143 015BY10149 Honda D17 H22 connecting rods conrods
Product introduction
Key Products Features
1.Materials is high tensile 4340 forged steel.
2.Each rod is multi-stage heat-treated,
3.X-rayed,
4.Sonic-tested,
5.Magnafluxed,
6.100 percent machined,
7.Shot-peened to stress-relieve the metal.
8.Precision cap alignment sleeves to positively locate each rod cap,
9.Aluminium bronze bushings for floating pin models,
10. Hardness is HRC33-38.
11.Bolts tesile strength
Application
For Honda D17 H22 L-Series
Style number
015BT12137 015BV17143 015BY10149
Beam style
H-beam
Material
Forged 4340 steel
Tolerance
Sets weight match +/-1 gram
Warranty
1 year
Measurement
Style no
Description
CC
B/E bore
S/E bore
B/E width
S/E width
Bolts
015BT12137
for Honda D17
137.0mm
48.000
19mm
19.810
21.050
3/8"
015BV17143
for Honda H22
143.15mm
51.000
22mm
23.770
23.770
3/8"
015BY10149
for Honda L series
149.0mm
43.000
18mm
17.830
17.830
3/8"
Price: for the latest price, please feel free to contact us.
Payment:T/T ,Paypal.
Quality: Stable and reliable
Strict QC management
Certification: ISO/TS16949 and ISO14001
Beam Style:H-beam/I-beam
Bushing:Bronze bushing
Rod Wrist Pin Style:Floating/ Press Fit
Packaging Details:Rust preventing oil packing,Plastic, Cardboard,Carton,Iron case,Wooden case.
Delivery Detail:30days
