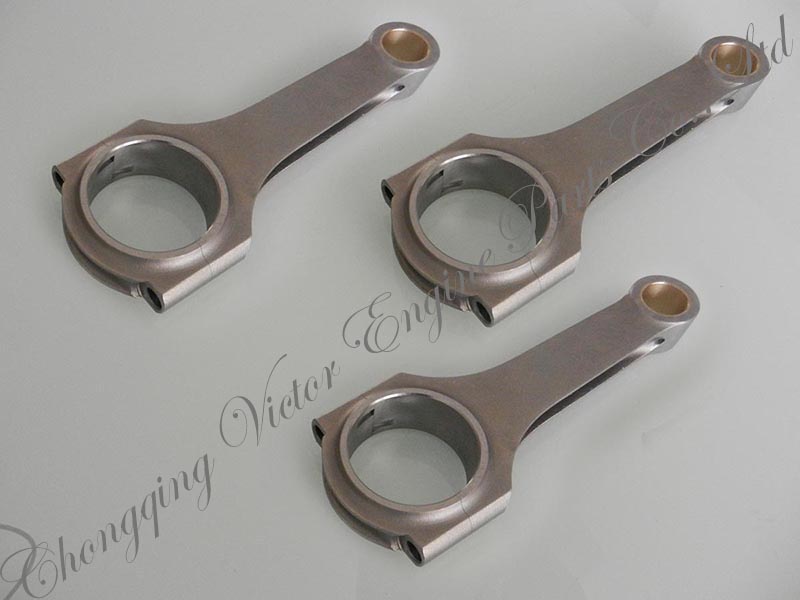

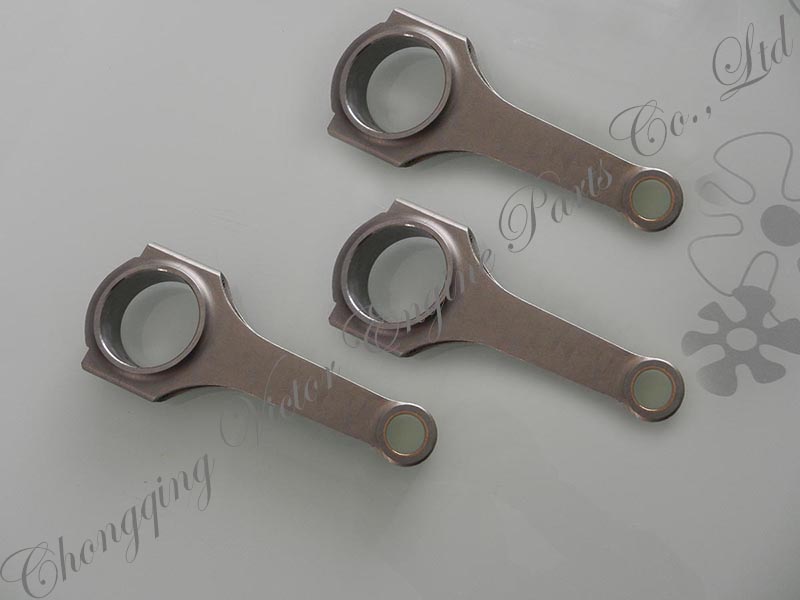

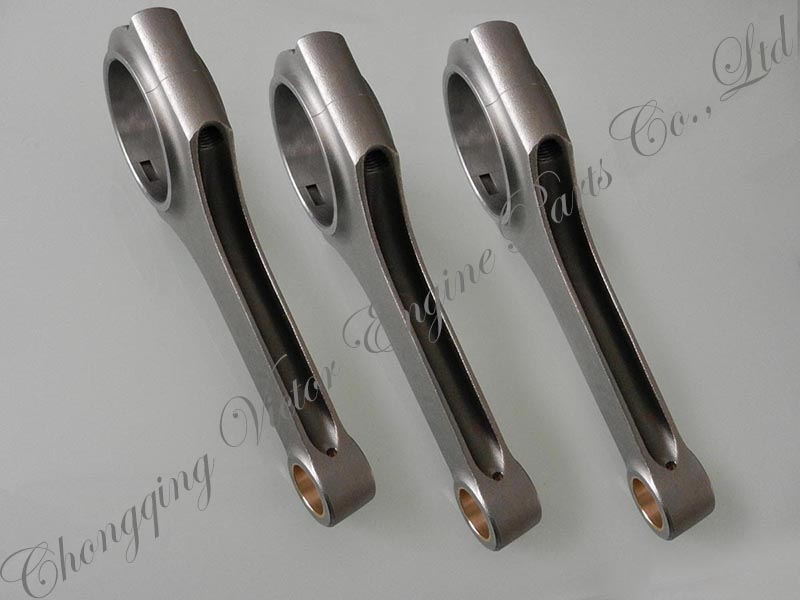

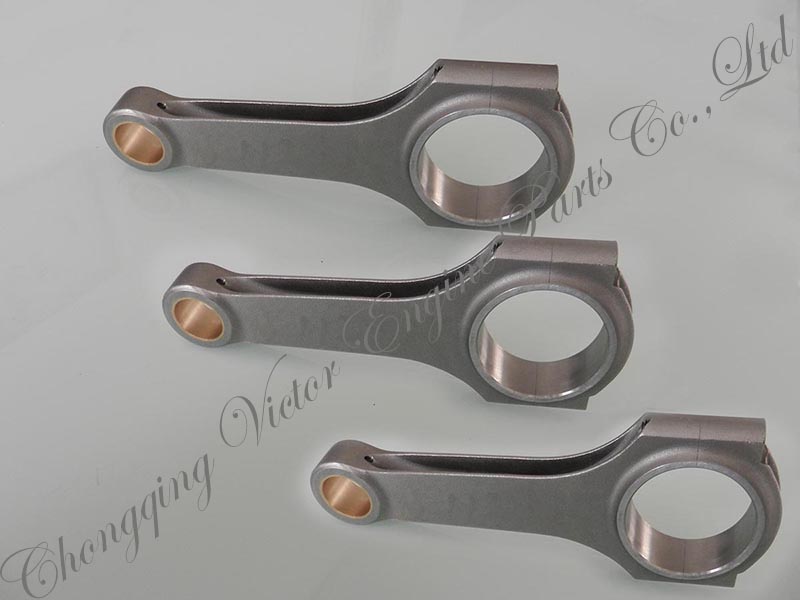

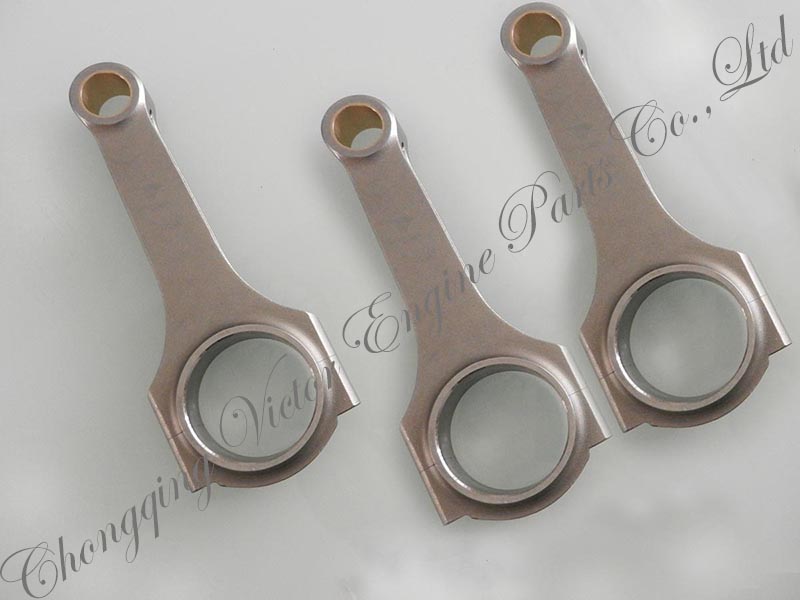

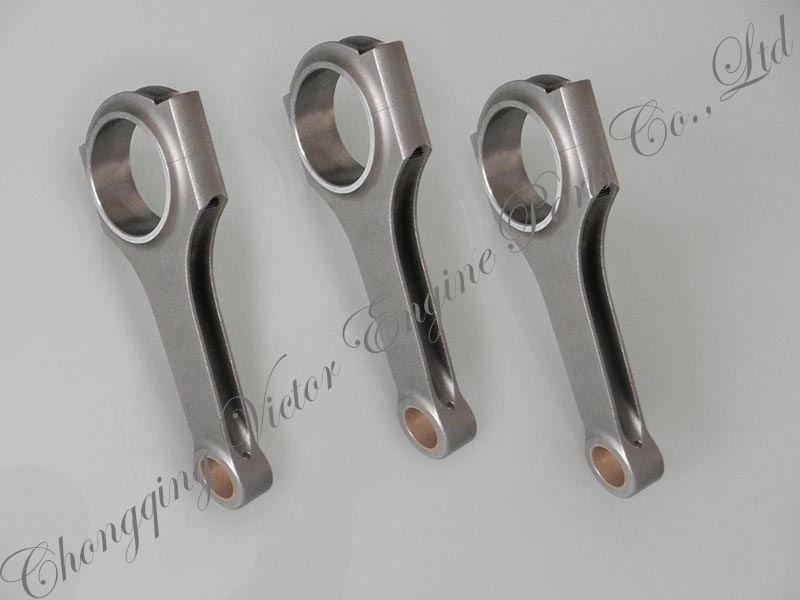

315BS16138 015BR16529 015BR16137 015BS16138 Honda connecting rods conrods
- Honda connecting rod
- H-beam/I-beam
- 4340 forged steel
- Is customized
- Product description: 315BS16138 015BR16529 015BR16137 015BS16138 Honda connecting rods conrods
Product introduction
Key Products Features
1.Materials is high tensile 4340 forged steel.
2.Each rod is multi-stage heat-treated,
3.X-rayed,
4.Sonic-tested,
5.Magnafluxed,
6.100 percent machined,
7.Shot-peened to stress-relieve the metal.
8.Precision cap alignment sleeves to positively locate each rod cap,
9.Aluminium bronze bushings for floating pin models,
10. Hardness is HRC33-38.
11.Bolts tesile strength
Application | For Honda B series | ||||||
Style number | 315BS16138 015BR16529 015BR16137 015BS16138 | ||||||
Beam style | H-beam | ||||||
Material | Forged 4340 steel | ||||||
Tolerance | Sets weight match +/-1 gram | ||||||
Warranty | 1 year | ||||||
Measurement | |||||||
Style no | Description | CC | B/E bore | S/E bore | B/E width | S/E width | Bolts |
315BS16138 | 138.0mm | 48.001 | 21mm | 21.720 | 22.860 | 3/8" | |
015BR16529 | 134.3mm | 48.012 | 21mm | 23.800 | 20.070 | 3/8" | |
015BR16137 | 137.0mm | 48.001 | 21mm | 23.770 | 20.070 | 3/8" | |
015BS16138 | 138.0mm | 48.001 | 21mm | 21.720 | 22.860 | 3/8" |
Price: for the latest price, please feel free to contact us.
Payment:T/T ,Paypal.
Quality: Stable and reliable
Strict QC management
Certification: ISO/TS16949 and ISO14001
Beam Style:H-beam/I-beam
Bushing:Bronze bushing
Rod Wrist Pin Style:Floating/ Press Fit
Packaging Details:Rust preventing oil packing,Plastic, Cardboard,Carton,Iron case,Wooden case.
Delivery Detail:30days
